1、Easy Wiring: The kit includes 2 VU meters and 1 driver board, which is easy for wiring, connection and operation even for beginners.
2、Backlit Function: The VU panel meter has a backlit function, which can be read clearly even in a dim environment.
3、Adjustment Potentiometers: The driver board can control two VUs, potentiometers can adjust the brightness of the backlit, adjust the amplitude of the pointer swing, which is a good helper for the recording engineer.
4、Stable Performance: The VU meter adopts high strength ABS, and the drive board adopts precise wired PCB board, with stable performance and good durability.
5、Wide Application: This VU meter is suitable for DIY, recording studio, home audio, car audio conversion, medicine equipment etc.
Item Type: VU Meter
Material: ABS, PCB
Maximum Current Sensitivity: 1000uA±10%
Internal DC Impedance: 650Ω±10%
Insulation Resistance: More than 50MΩ
Friction: ±1mm
Pointer Length: 44±1mm from needle end to axes
Pointer Width: 0.45±0.05mm
Meter Installation Position: Vertical
Backlit: Light transmission 3V 20MA
Scope of Application: Suitable for DIY, recording studio, medicine equipment, etc.
Weight: Approx.206g/7.3oz

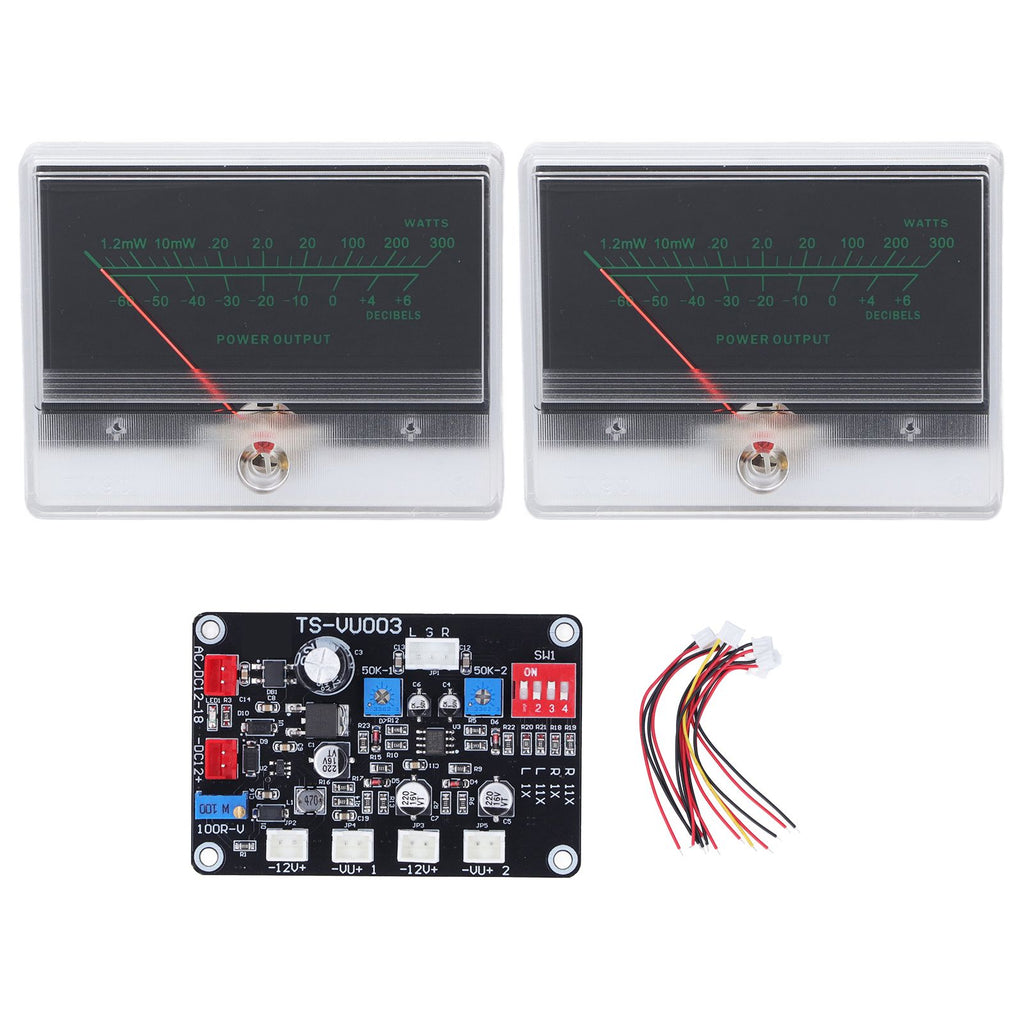

2 x VU Meter
1 x Driver Board
6 x Wiring Cable
1 x Audio Cable
1 x User Manual
