1、Functions: Green screen keying, virtual background, foreground mapping, teleprompter, picture in picture, multi camera close up, four platform live broadcast, downloadable APP, 5G wireless fidelity, support for U disk, high definition multimedia input. 2、Green Screen Keying, Virtual Background, Scene Function: One key to change any background in a second. Comes with blue, green screen keying function, support for pictures, PPT, video background (without green screen, blue screen). Support preset multiple scenes, you can quickly switch between the preset scenes created during the live broadcast. 3、Teleprompter, Video Recording: You can add text teleprompter function, moving and scrolling playback in any position of the screen, and the text size, text color, scrolling speed can be adjusted. Live broadcast can be recorded and stored in the local hard disk, allowing you to look back at the recorded content, review the details of the live broadcast with the next live more simple. 4、Multi Camera Close Up Lens, Whiteboard: Can be connected to an external camera, can access multiple camera images at the same time. Live can be arbitrarily switched lens, so that the live content is more exciting. Whiteboard function supports single point, multi point writing, back of the hand erase, font size, color selection. 5、Live Interactive, 2 Modes, Battery: Support professional mobile guide desk function, etc., intelligent interactive application scenarios. Intelligent guide desk software supports two modes of switching, a window mode, a full screen mode. Live page support vertical and horizontal screen, freely adjust the direction, can be applied to more software scenes. Built in 6000mAh rechargeable battery, long standby time, strong battery life, live without pressure. 6、Simple To Operate: Simple to operate interface, no need for professional training and guidance. Cell phone software LAN remote control, with uploading material, switching background, switching foreground patch, uploading inscription book material and other functions. Meet the enterprise, individual, talent and other live broadcast. You can sit and broadcast, stand and broadcast at will, to meet the needs of different people live.
Specification

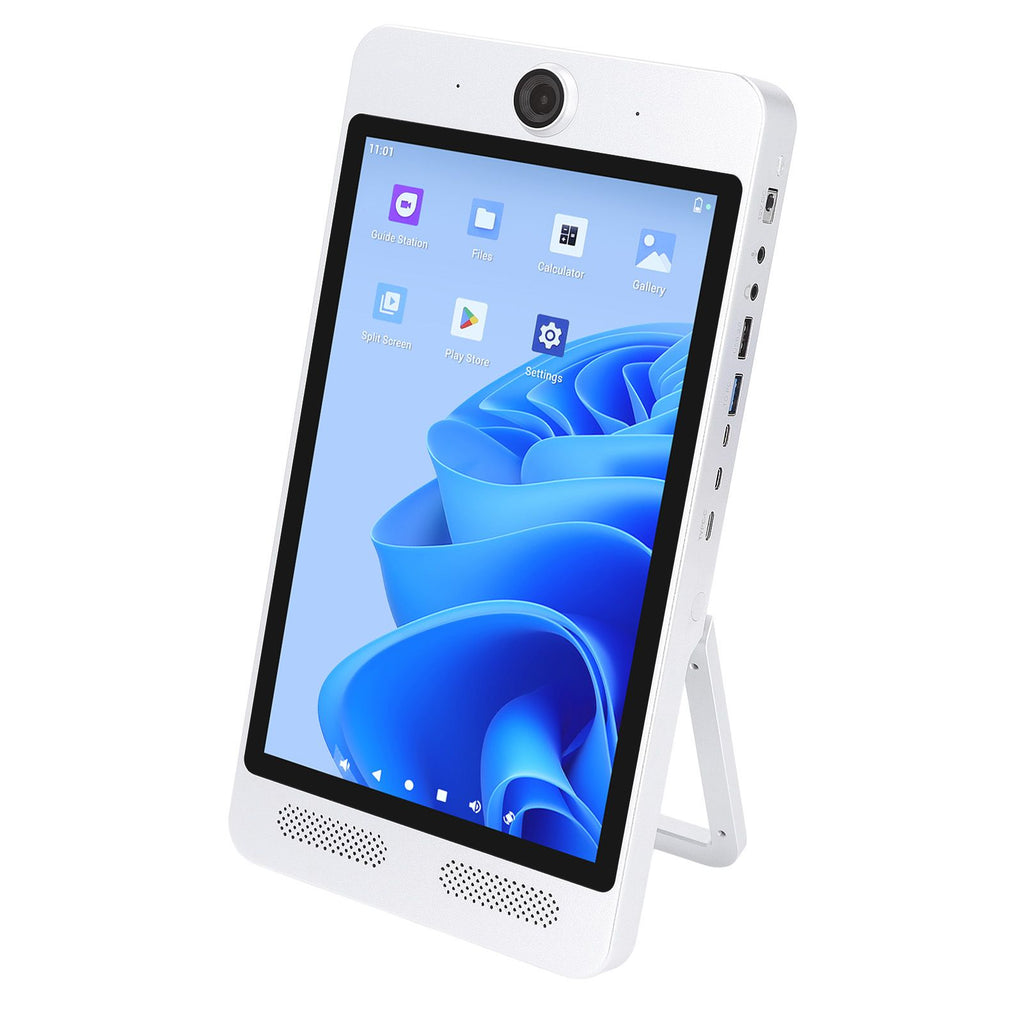

Item Type: Tabletop Live Streaming Machine
Material: Aluminum Alloy
Weight: Approx. 2604g / 91.9oz
Product Size: Approx. 30x16x2.5cm / 11.8x6.3x1.0in
LCD Size: 10.1inch (IPS)
LCD Resolution: 1200(H)x1920(V)
TP Touch Screen: Capacity TP INCELL 10 Point Touch
Virtual Buttons: Yes
Battery (Built In): Lithium Polymer Battery
Battery Capacity: 3.7V 6000mAh
Using Time: Standby Time: Approx. 400 Hours, Talk Time: Approx. 6 Hours, Use Wireless Fidelity Approx. 4-5 Hours
System Hardware Configuration:
CPU: Type: RK3588, Frequency: Quad Core Cortex A76 Quad Core Cortex A 55, Process: 8nm
GPU Type: ARM Mali G610 GPU, Embedded High Performance 2D Image Acceleration Module
NPU Type: 6.0 TOPs NPU, Support Various AI Applications
Hardware Decoding: Photo: Support BMP JPG GIF And Other Formats; Video Format: 4K 60fps AAC LC, HE AACv1 (AAC), HE AACv2 (Enhanced AAC), AAC ELD; Sound Format: HEVC 4K 60fps H.263, H.264 AVC, H.265 HEVC, MPEG 4 SP, VP8, VP9
Storage: Memory: 16GB, Read Only Memory: 256G, Expanded Storage: Maximum 2TB
Camera: Front: IMX766 5000W, Rear: NO
Speakers: Internal: 8Ω 1Wx4 (AW87559x4)
Receiver: Internal: NO
MIC: Internal: YES, 1 Microphone
Sensors: G Sensor: YES. Light Sensor: YES, Screen Brightness Will Be Adjusted Automatically. Compass: NO. Proxy Sensor: NO. Gyro Sensor: NO.
DTV: Internal NO
Global Position System: Internal YES Global Position System For BDS For Glonass For Galileo
LED: Power Indicator: YES, Charging Indicator: NO, Network Indicator: NO, Transformer Indicator: NO
Network Connection:
Wireless Fidelity: 802.11 a b g n ac ax (Wireless Fidelity 6)
FM: Yes, Headset Required
3G Standard, Frequency: WCDMA, TD SCDMA: 3G: B1 2 5 8. C2K EVDO: NO, GSM: GSM 850 900 1800 1900MHz
4G LTE: 4G: FDD: (B1 B4) B2 B3 B7 B5 B8 B20 B17 TDD: B38 B39 B40 B41
5G NR: NR: N1 3 5 7 8 20 28 38 40 41 77 78 Tuned bands: B1 2 3 4 5 7 8 12 13 17 20 28 38 39 40 41 77 78
BT: BT5.2, 3.0 HS, 2.1 EDR
I/O Configuration.
Pushbuttons: Physical Button: YES, Power or Vol Up, Vol Down or Reset; Virtual Pushbuttons: YES
Finger Recognition: YES
TYPE C Interface Type: TYPE C, USB2.0 DP, Interface Can Realize USB Peripheral Expansion (USB Flash Drive, Wireless Mouse, USBcam)
Headphone Sound Interface: 4 Piece Earphone
Charging: Fast Charging, PD 18W Type C Connection
HD Multimedia Interface: Video Interface: 1xMini HD Multimedia Interface, HD Multimedia Interface Input
Keyboard And Mouse Access Modes: TYPE C, BT
Software Configuration:
OS: For Android 12
Language: Chinese, English, Spanish, Italian, French, Portuguese, Russian, German, Japanese, Korean, And Many More Options.
Flash: Support
HTML5: Support
APP:
Email: Email v4.1
Browser: Browser v4.1.1
Calculator: Calculator v4.1.1
Calendar: Calendar v4.1.1
Clock: Clock v2.0.3
Search: Search v4.1.1
Gallery: Gallery v1.1.4000
Download Zone: Downloads v4.1.1
Webcam: Camera v1
Music: Music v4.1.1
Movie Player: for MoviePlayer v1.73
File Manager: for FileBrowser v4.0
Application Installer: for AppInstaller v1.0
Settings: Settings V4.1.1
Applications: For Facebook Live, For TikTok Live, For YouTube Live, others
App: for EzPDF ReaderV1.0.16.0, for V1.6.5, for NSEBookReaderV1.0
The Basic Screen of the Guide Console:
1. Live output screen
2. Right column function control center
3. Enable or hide the background, foreground, text and other functions
4. Background, foreground slideshow, recording video, drawing board, the use of the clock pendant
5. Jump to the live application interface
6. Function setting area
Sound Settings:
Microphone:
Microphone Selection: You can choose headphones, sound cable, HD multimedia interface, and can also support lavalier microphone, sound card and so on.
Microphone Volume: Adjust the size of the microphone's speech output for live broadcasting.
Microphone Noise Reduction: Use the headset mode, will use the built in microphone, open the microphone noise reduction can reduce the surrounding noise
Sound output:
Local Volume: You can increase the volume of the machine
Live Volume: Adjust the size of the background music output to the live room from the guide desk
Microphone Mute: Open the microphone mute when talking transmission is not live, was muted
Speaker Mute: When you open the speaker mute, the speaker of the live machine will be muted, you need to plug in the headset
Sound Extension: Control the background music, video sound and sound effects of the console to be output to the live room, including background music in the background, foreground video in the foreground, music of the console and online music.
Live Vocal Enhancement: Automatically reduce the sound of background music during live broadcasting to make the human voice more clear.
Background And Foreground Material Import:
Add background images and add local background material (foreground images can be zoomed in and out), the local paths of foreground and background are common, if you want to add foreground images, you can add them according to the way of adding background.
Package List
1 x Tabletop Live Streaming Machine
1 x Adapter
1 x Supply Cord
1 x Cleaning Cloth
1 x Instruction Manual
Note
1. Please use the official Type C interface charger, the use of cell phone chargers have the risk of not charging
2. Using a third party charger has the risk of insufficient current or protocol mismatch, please use the official standard charger
3. When charging and broadcasting for a long time, the high temperature of the machine is a normal phenomenon, which does not affect the live broadcast
4. Outdoor broadcasting to avoid high temperatures, high temperatures will reduce the degree of live experience, and even lagging not fluent
5. When using the built in battery for live broadcast, make sure the battery power is more than 20%, otherwise there will be low power automatically shut down the situation
6. When you need to increase the number of cameras, we recommend the use of HD multimedia interface IN interface expansion, the use of USB interface camera there will be USB bandwidth problems, the overall experience is not as good as the HD multimedia interface IN interface camera
7. When the anchor walks back and forth live, it is recommended to use the lavalier microphone, entertainment, singing anchor is recommended with a professional singing sound card
8. Shipping without green screen or blue screen
