1、[Crimping Terminal Connection] The extension cable adopts the crimp connection terminal, with good abrasion resistance and excellent softness.

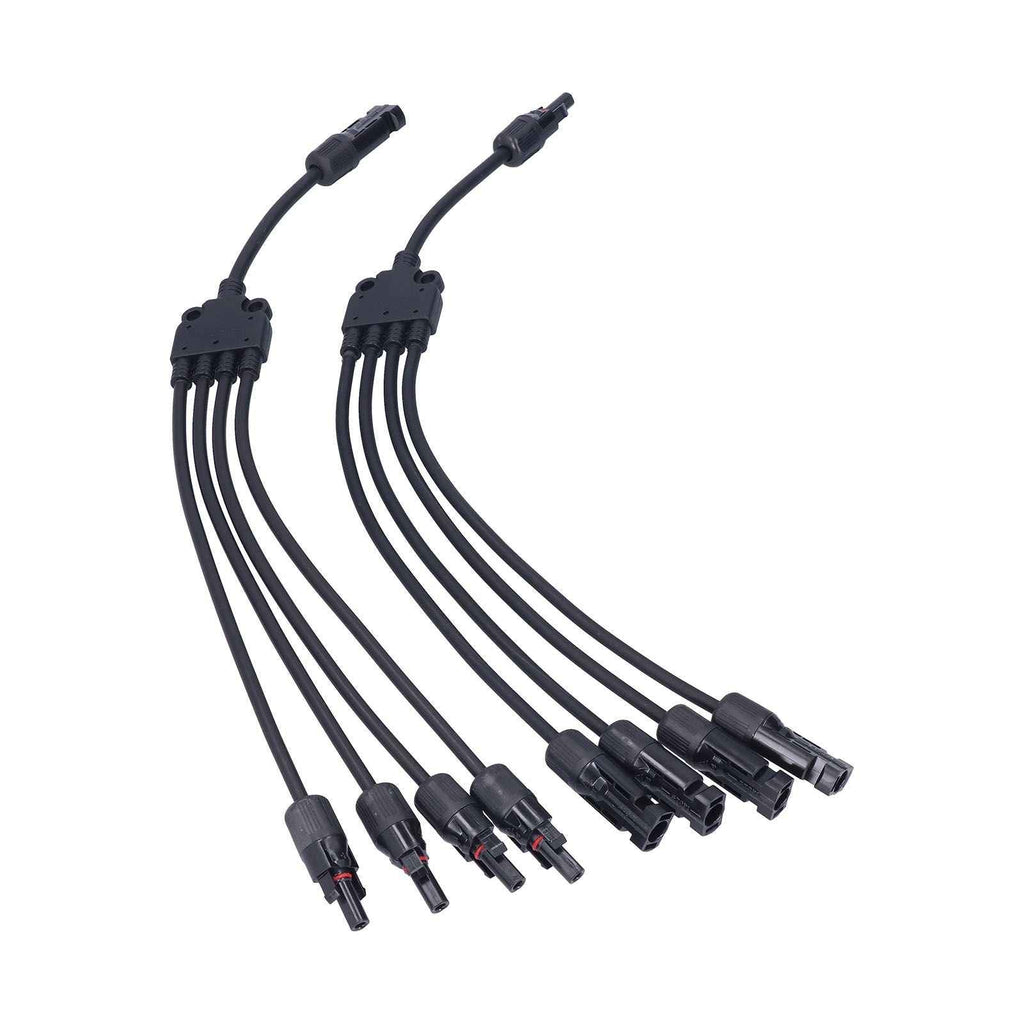

2、[4 to 1 Solar Cable Connectors] This 4 way connector kit could be used for connecting upto four solar panels in parallel.
3、[Waterproof Solar Extension Cable] Solar cable connector adapter is perfect to sealing out water and dust to prevent corrosion.
4、[Durable] The extension cable connectors are stable and safe with the built‑in lock which is long durable in outdoor environment.
5、[Wide Application] The connector 4 branch Y type solar cable, suitable for solar power station, PV connector and PV junction box.
Item Type: Solar Panel Connector
Material: Plastic + Brass
Color: As shown in the picture
Weight: Approx. 347g / 12.2oz
Working Current: 20A (4mm²), 30A (6mm²)
Withstand Voltage: DC1000V
Contact Resistance: =0.5mΩ
Insulation Resistance: 500MΩ
Applicable Single Core Cable Section: 1.5mm²-6mm²
Cable Outer Diameter Range: Φ5-7mm / 0.20-0.28in
Ambient Temperature: -40 ℃ - + 105 ℃
Protection Level: IP67
Security Level: Ⅱ
Insertion Force: ≤50N
withdrawal Force: ≥50N
Flame Retardant Rating: UL94-VO
Terminal Connection Method: Crimping
Application: Solar Panel Connection, etc.
1 x Positive Connector
1 x Negative Connector
