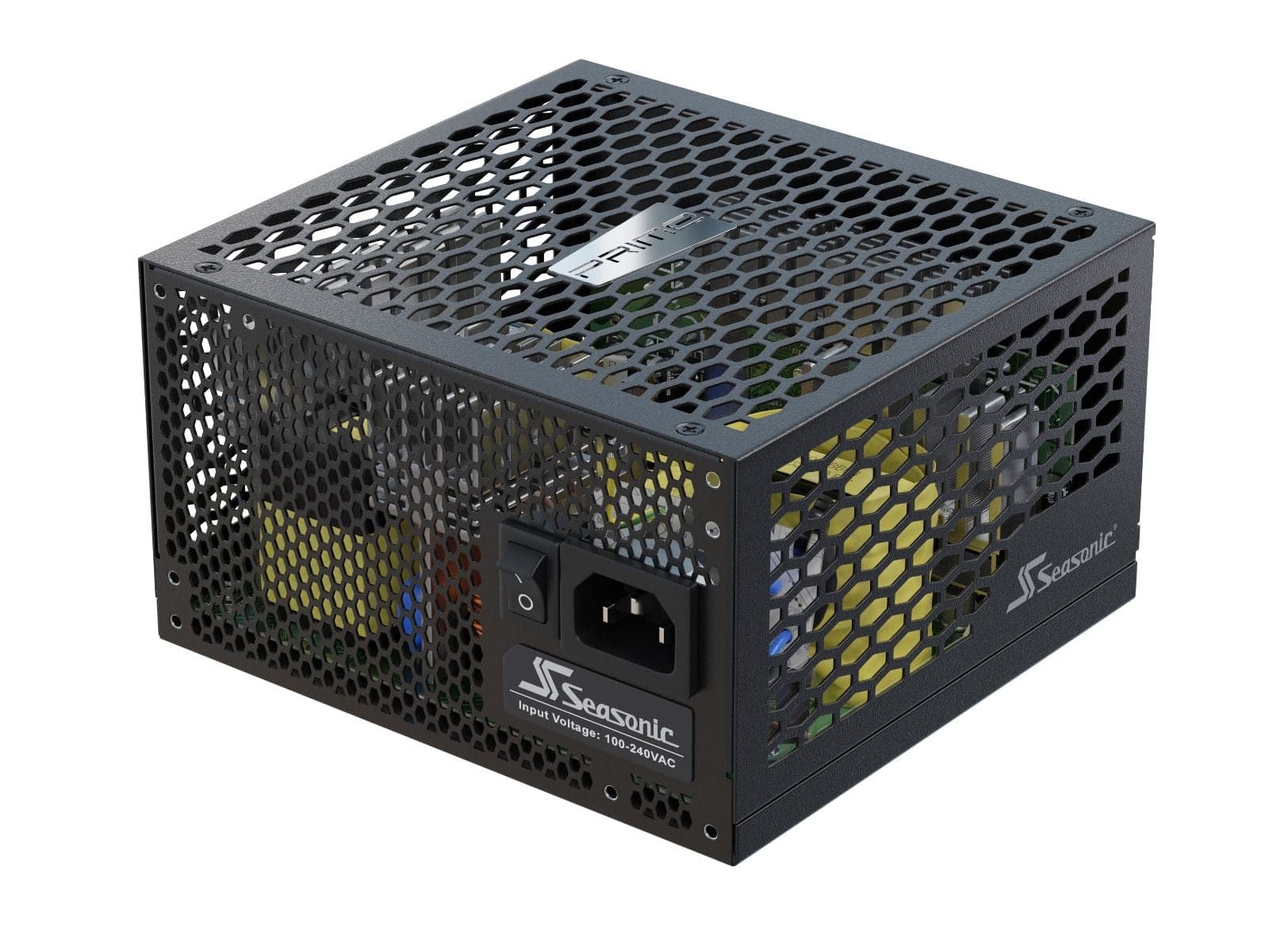

Seasonic Prime Fanless PX-500 500W Platinum PSU (SSR-500PL)
FEATURE SUMMARY
| Technical Specifications | ||
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | N/A |
| Fan Control | N/A | |
| Fan Bearing | N/A | |
| Life Expectancy | N/A | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Webbed cables (MB, CPU, PCIe) Flat black cables |
|
| Electrical Features | Operating Temperature | 0 - 50°C (derating from 100% to 80% from 40°C to 50°C) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V |
|||||
Current: 7 - 4 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A |
|
100 W | 492 W | 3.6 W | 15 W |
|||
Total Continuous Power | 500 W | |||||
