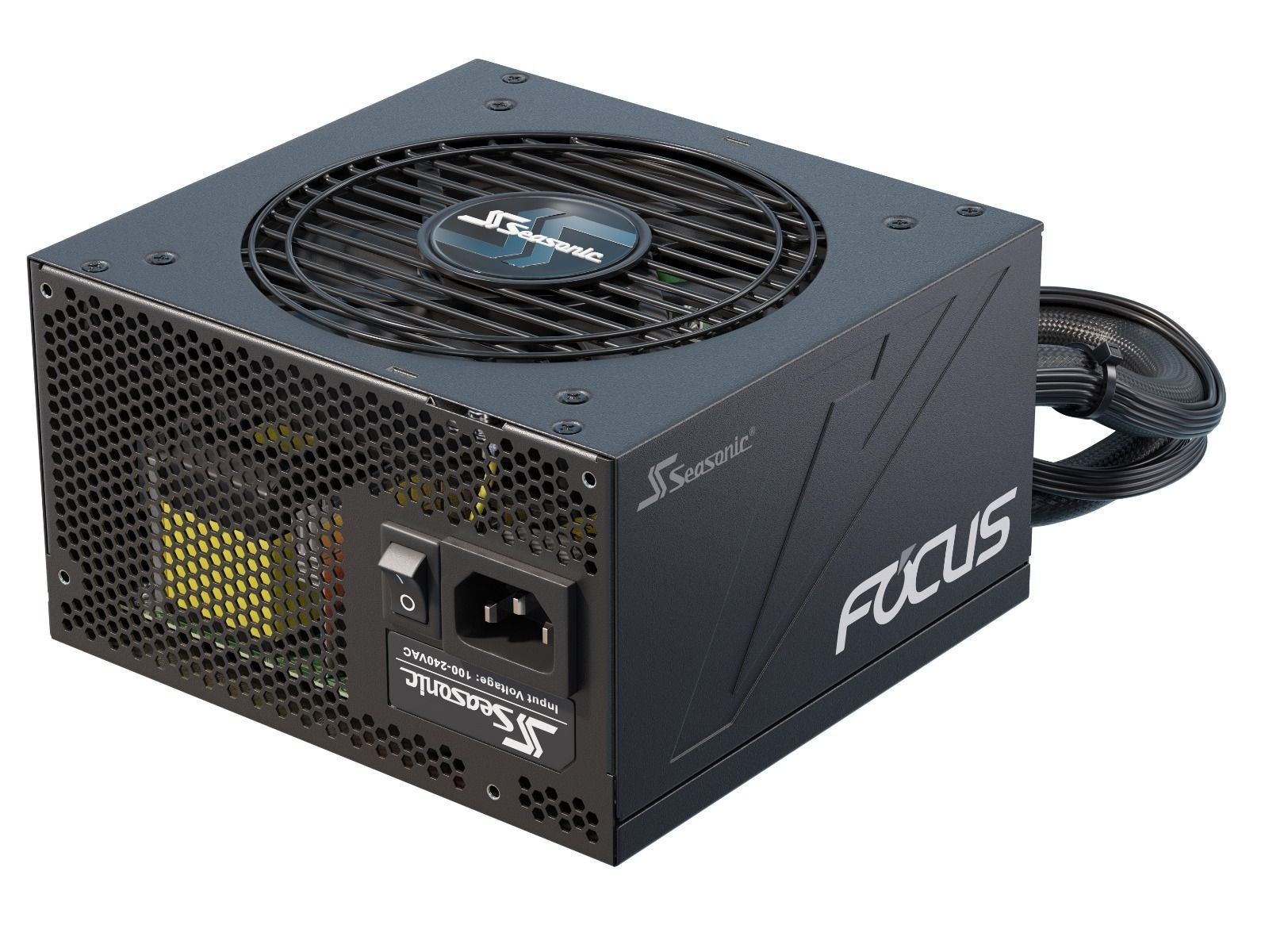

SeaSonic 850W FOCUS GM-850 Gold PSU (SSR-850FM) (OneSeasonic)
$270.00
FEATURE SUMMARY 80 PLUS Gold certified Semi-Modular Cables Compact Size - 140 mm deep Tight Voltage Regulation Cable-free Connection Design S2FC - Smart and Silent Fan Control DC to DC Converter Design Multi-GPU setup Gold plated connectors 7 years warranty Specifications Technical Specifications 80PLUS Gold Form Factor Intel ATX 12...
FEATURE SUMMARY
Specifications
| Technical Specifications | ||
|---|---|---|
| 80PLUS | Gold | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S2FC | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 C, 15 % - 65 % RH | |
| Cable Information | Modularity | Semi-modular |
| Cable type | Webbed cables (attached) Flat black cables(modular) | |
| Electrical Features | Operating Temperature | 0 - 50 C (derating from 100 % to 80 % from 40 C to 50 C) |
| MTBF @ 25 C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 12 - 6 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
Cables
| Connector | Connector count |
|---|---|
| Main Power (24/20 pins) | 1 |
| CPU (8/4 pins) | 1 |
| PCIe (8/6 pins) | 6 |
| SATA | 8 |
| Peripheral | 3 |
| Floppy | 0 |
Specifications are subject to change without prior notice.
