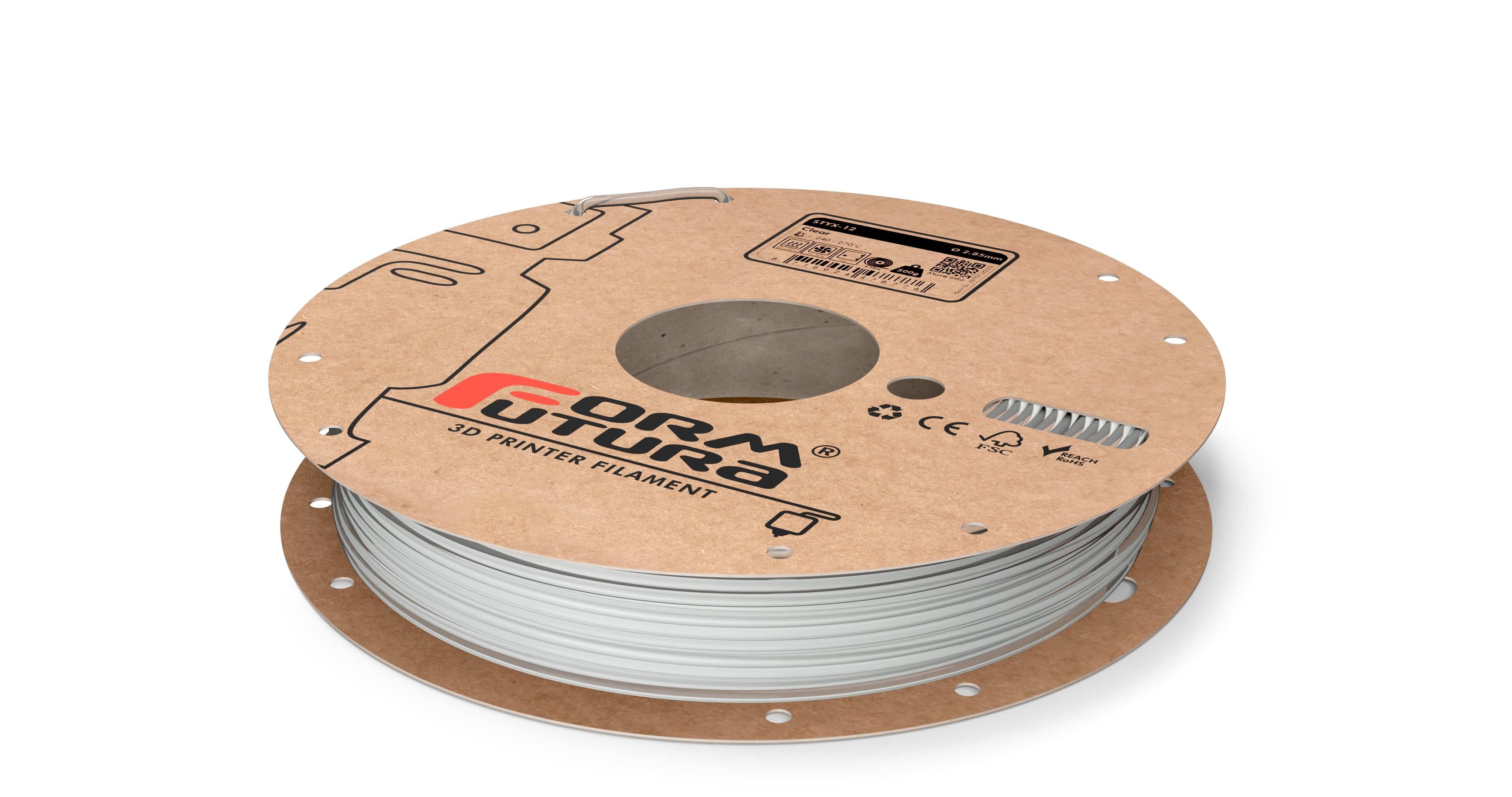

PA Nylon Filament STYX-12 2.85mm 500 gram White 3D Printer Filament

$123.99
STYX-12 is an industrial PA12 grade nylon filament which combines excellent mechanical, chemical and hygroscopic properties with printability.  STYX-12 has a very low water absorption compared to other nylons and can be printed at relatively low temperatures.  This combination of properties has resulted in high-performance and industrial-grade nylon which can...
-
+
$103.00

darrahopens

Electronics > Computer Accessories

Out of stock

STYX-12 is an industrial PA12 grade nylon filament which combines excellent mechanical, chemical and hygroscopic properties with printability.

STYX-12 has a very low water absorption compared to other nylons and can be printed at relatively low temperatures.  This combination of properties has resulted in high-performance and industrial-grade nylon which can be printed on a wide-range of FFF/FDM 3D printers.



Unique features

  • Superb mechanical properties
    • Strong, flexible, high impact resistance, high crack resistance, high scratch resistance
  • Excellent chemical resistance
  • Excellent weather and UV resistance
  • Outstanding dimensional stability
  • Good first layer adhesion to EasyPad + DimaFix prepared print bed
  • Very clear in its natural form (without added colorants)
  • Engineered to be compliant to FDA food and drink contact articles



General printing guidelines *



Nozzle size: ≥ 0.2mm

Layer height: ≥ 0.1mm

Flow rate: ± 100 - 110%

Print temp: ± 240 - 270° C

Print speed: Low / Medium

Retraction: Yes - 5mm (45mm/s)

Heat bed: ± 80 - 120° C

Fan speed: 10-30%

Experience level: Intermediate / Expert



*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offsets that it is extremely difficult to give an overall one-size-fits-all setting.



Filament length



ρ: 1.02 g/cc

50 gr coil

0. 5 Kg spool



Ø 1.75mm

± 20.4m

± 204m



Ø 2.85mm

± 7.7m

± 77m





Product export information



HS Code: 39169090

Description: Monofilament

Country of origin: the Netherlands








*) FDA compliant filament is specifically made of FDA compliant polymers for direct food contact/containers or raw plastic material for 3D Printing Prototyping and Manufacturing. This filament is made to meet the requirements for the use in Food Contact Articles. Please note that the filaments do not have an actual FDA listing number.



*) RoHS & REACH compliance in accordance with: RoHS Directive 2011/65/EC -&- REACH Directive 1907/2006/EC.
