Feature:
- Locate the wiring or connection error.
- Measure the cable length and determine the distance of open circuit and short circuit.
- Dynamically calibrate cable length and make length measurement as accurate as 97%.
- Easy to use, backlight LCD display screen to display test result clear.
- Long battery life (50 hours standby time), durable in use.
- Automatically time-delay shut off, when the tester doesn't operate for 30 minutes.
- Measure length and pair with or without far-end recognizer.
- Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID 8).
- Single-frequency prompt function of remote identification device.
- Self-check function, automatically compensate any change in battery capacity or ambient temperature.
- Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
- Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
- Equipped with a storage bag for easy carrying.
-One person enough to complete cable continuity check.
- Far-end recognizer with prompting voice.
- Available tool for technicians in installation and maintenance of weak current system, such as, communication line, comprehensive wiring circuit, etc.
- Widely applicable to telephone system, computer network, other metal wire circuit and other fields.

Specification:
Type: Line Network Tester
Color: Blue
Material: ABS
Size: 185*105*50mm (Main Tester); 218*46*29mm (Receiver)
Display: 4 x 16 character big screen LCD
Ambient temperature : -10°C ~ +60°C
Power Source: 9V Battery (Included)
Standby Time: 50 hours (Fully Charged)
Tester port: RJ45 master port(M), LOOPBACK RJ45 port(L); Hunting RJ45 port(With RJ45)
Type of cable tested: STP/UTP twin twisted cable, Coaxial cable, Telephone line
Type of cable detected: 5E, 6E,BTelephone wire, Coaxial cable, USB cable and other metal wires
Length measurement of Twin Twisted Cable:
Scope : 1~350M (3~200ft)
Calibration accuracy : 3% (+/-0.5M or +/-1.5ft)(calibrating cable >5M)
Shipment accuracy : 5% (+/-0.5M or +/-1.5ft).(AMP, AT&T Class 5 cable)
Weight: 0.9kg

Application:
◆Computer network circuit engineering
◆Other metal wire line engineering and maintenance work
◆Telecommunication network line engineering and daily maintenance work

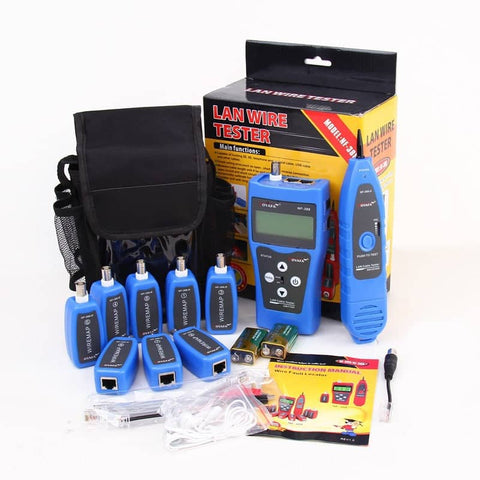

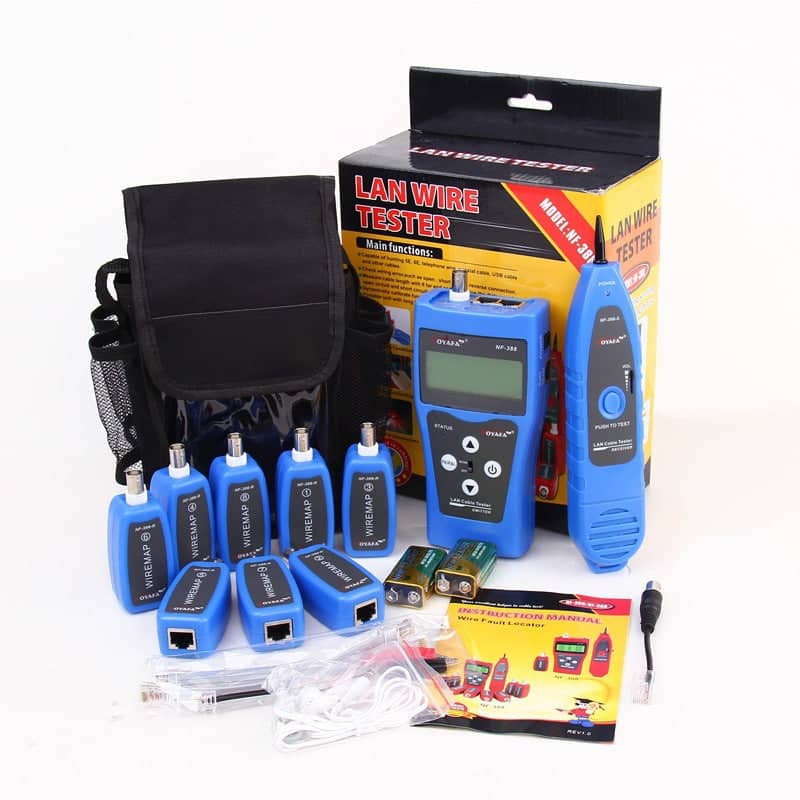

Package Included:
1 x Cable Transmitter
1 x Receiver
8 x far-end passive test jacks (ID no.ID1-ID8)
1 x RJ45 Cable
1 x RJ11 Cable
1 x Cable with crocodile clamp
1 x Earphone
2 x 9V Battery
1 x Instruction manual
1 x Storage Bag

Attention:
1.Don't connected high voltage lines to avoid burning out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
