1、Reliable Practicality: MPPT maximizes the conversion of solar panel energy to battery charging, which has reliable practicality.
2、Rectifier Circuit: The IP67 MPPT solar controller adopts a high efficiency synchronous rectifier circuit structure.
3、Anti Backflow: The solar panel controller has the function of anti backflow, which meets daily power supply needs.
4、Simple Installation: The solar panel controller can be installed by connecting the output and input lines according to the applicable voltage.
5、Protection Function: With short circuit protection, over temperature protection, solar input under voltage protection, battery under voltage protection, load port short circuit protection.

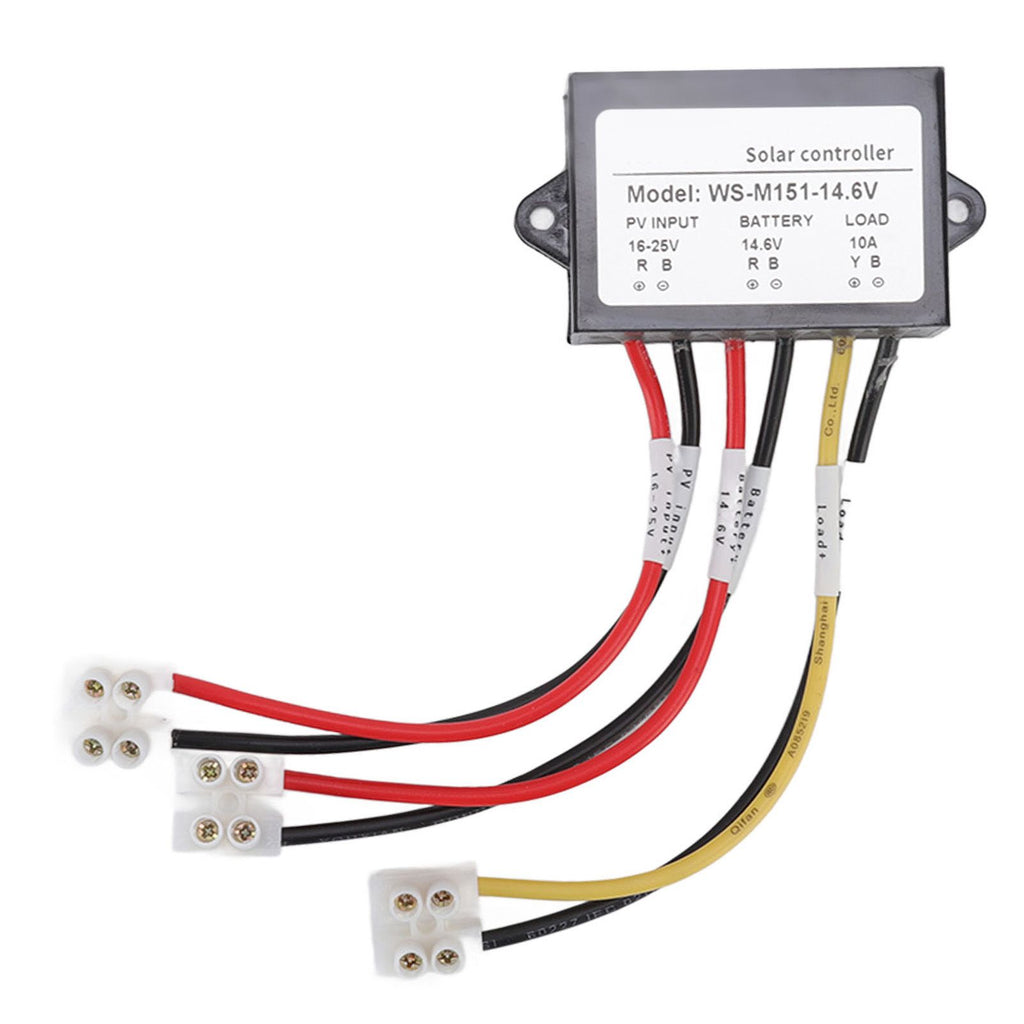

Item Type: MPPT Solar Controller
Material: Plastic
Product Size: Approx. 40 x 75 x 22mm / 1.6 x 3.0 x 0.9in
Photosensitive: No Output During the Day, Load Output at Night, Suitable for Street Lights
Efficiency: ≥95%
Noise: 55dB
Application: Solar Street Light Controller Scene
Suitable for Photovoltaic Panel Parameters: Open Circuit Voltage: 21-25V
Charging Module:
Photovoltaic Input Power: 150W
PV Input Start Up Voltage: 17V
PV Input Tracking Voltage: 16 to 25V
Output to Battery Current: 10A (maximum 12A)
No Load Loss: 20MA
Voltage Regulation Rate: 1%
Load Regulation: 5%
Full Load Ripple: 400mV
No Load Ripple: 100mV
Discharge Module:
Input Voltage: Equal to Battery Voltage
Load Output Voltage: Equal to Battery Voltage
Load Output Current: 10V
Static Power Consumption: 12mV
Load Output Mode: Photosensitive
Protection Module:
Battery Terminal Short Circuit Protection: Yes
Load Short Circuit Protection: Yes
Temperature Protection: Yes
Anti Backflow Protection: Yes
Protection Class: IP67
Operating Temperature: -40℃ to +65℃
Overheating Protection:
When the Internal Temperature of the MPPT Controller Exceeds 100℃, the MPPT Controller Will Reduce the Output Power. if the Internal Temperature Continues to Rise to 110℃, the MPPT Controller Will Automatically Turn off the Output. when the Internal Temperature of the MPPT Controller is Lower Than 90℃, the MPPT Controller Will Automatically Resume Operation.
Weight: Approx. 133g/4.7oz
1 x MPPT Solar Controller
