1、Battery Charging: This MPPT solar controller maximally converts solar panel energy to battery charging.
2、Synchronous Rectification: This solar charge controller adopts highly efficient synchronous rectification circuit structure.
3、Anti Backflow: This solar energy controller possesses anti backflow function. When there is sunlight, the controller charges the battery normally. When there is no sunlight, the controller can effectively prevent the battery from flowing back.
4、Multiple Protection: This MPPT solar controller supports short circuit protection, overtemperature protection, solar input undervoltage protection, battery undervoltage protection, load port short circuit protection.
5、Wide Application: This MPPT solar controller is widely used in solar street lamp controller, solar charger, solar electric bike, solar electric tricycle, solar toy car, household solar panels, solar monitoring, etc.

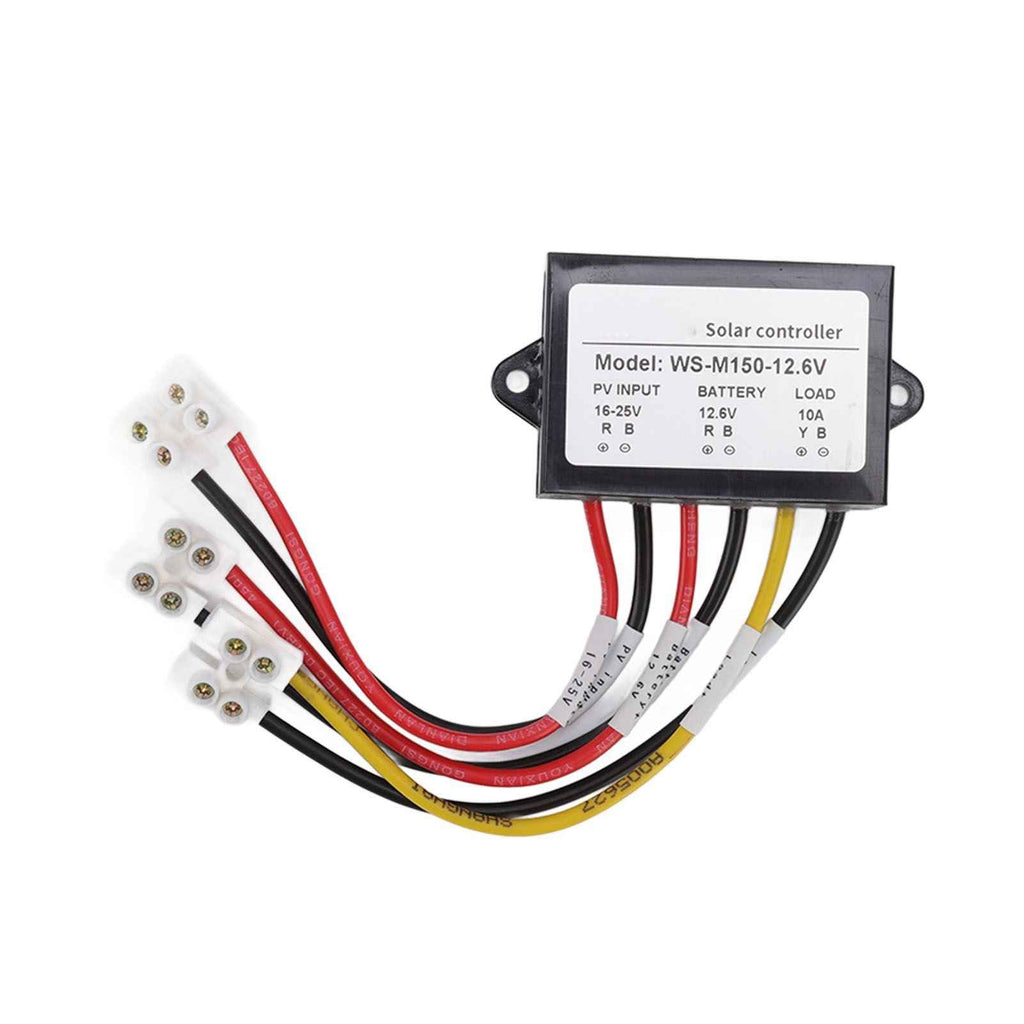

Item Type: MPPT Solar Controller
Material: Plastic
Normally Open: 24 Hours Load Output
Efficiency: ≥95%
Noise: 55dB
Application: Solar Street Lamp Controller, Solar Charger, Solar Electric Bike, Solar Electric Tricycle, Solar Toy Car, Household Solar Panels, Solar Monitoring and Other Application Scenarios
Suitable for Photovoltaic Panel Specification: Open Circuit Voltage: 21 to 25B
Charger Module:
PV Input Power: 150W
PV Input Starting Voltage: 17V
PV Input Tracking Voltage: 16 to 25V
Output to Battery Current: 10A (Maximum 12A)
No Load Loss: 20MA
Voltage Adjusted Rate: 1%
No Load Adjusted Rate: 5%
Full Load Ripple: 400mV
No Load Ripple: 100mV
Discharge Module:
Input Voltage: Equal to Battery Voltage
Load Output Voltage: Equal to Battery Voltage
Load Output Current: 10A
Static Power Consumption: 12mA
Load Output Mode: Normally Open
Protection Module:
Battery Short Circuit Protection: Yes
Load Short Circuit Protection: Yes
Temperature Protection: Yes
Anti Backflow Protection: Yes
Protection Level: IP67
Operating Temperature: Minus 40℃ to +65℃
Overheating Protection: when the Internal Temperature of the Mppt Controller Exceeds 100℃ , the Mppt Controller Will Reduce the Output Power. if the Internal Temperature Continues to Rise to 110℃, the Mppt Controller Will Automatically Turn off the Output. when the Internal Temperature of the Mppt Controller is Lower Than 90℃, the Mppt Controller Will Automatically Resume Operation.
1 x MPPT Solar Controller
