1、PWM automatic focus tracking charging, high charging efficiency, non‑stop detection during the charging process.
2、Built‑in overheating, overcurrent, short circuit, open circuit protection, troubleshooting, and automatic controller recovery.
3、Dual‑way MOS tube anti‑backflow circuit, high‑power charging mode, ultra‑low heat.
4、Large‑screen LCD display, adjustable charge and discharge parameters, with power‑off memory function.
5、Dual reverse current protection, low heat generation, built‑in short circuit protection, open circuit protection, reverse connection protection, overload protection.

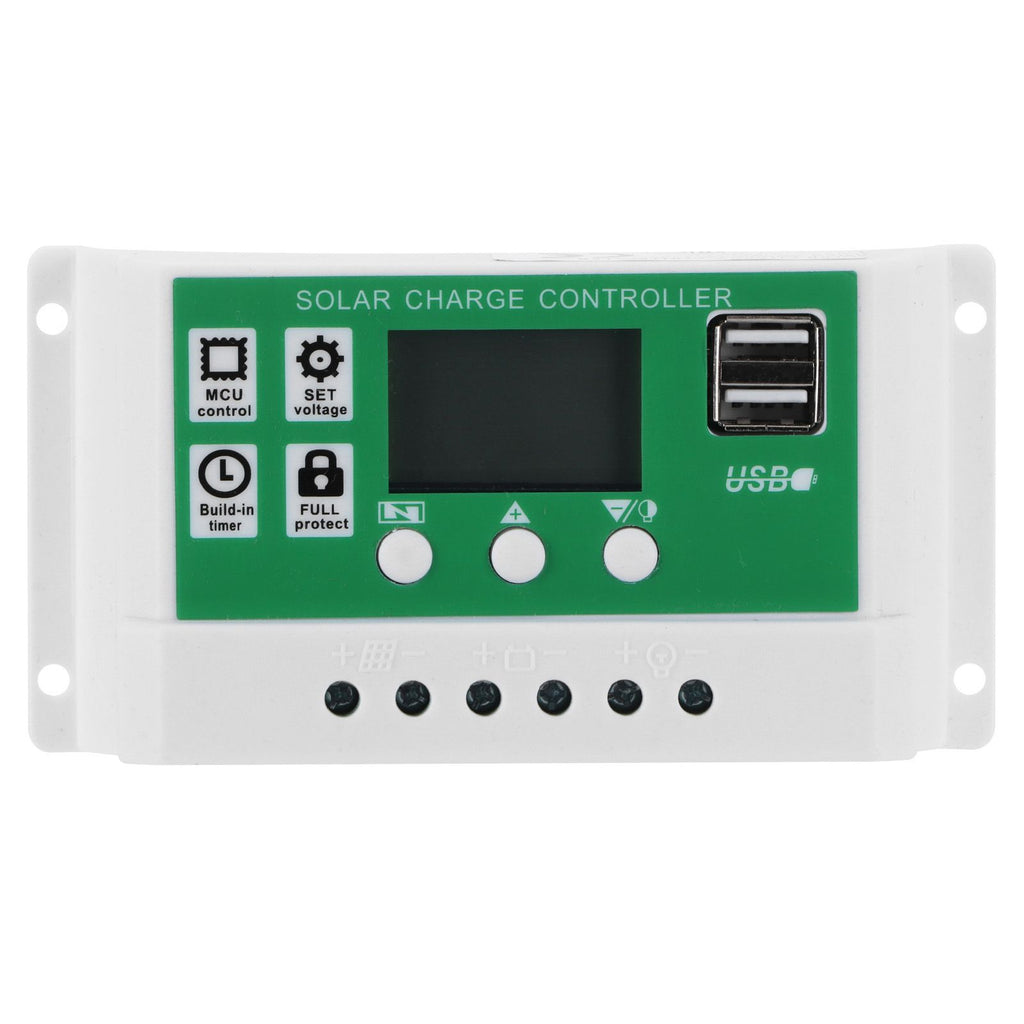

Item Type: Solar Charge Controller
Material: ABS
Rated Voltage: 12V 24V Automatic (12V is suitable for 18V solar panels, 24V is suitable for 36V solar panels)
Rated Current: 10A
Display: LCD Screen
Self-Consumption: 10MA
Overcharge Protection: 14.4V/28.8V
Charging Recovery Voltage: 12.6V/25.2V
Over Discharge Protection: 10.7V/21.4V
Over Discharge Recovery: 12.6V/25.2V
Dual USB Output: 5V/2A (Charging mobile phone, etc.)
Working Temperature: -35℃-60℃
Regulator Suitable Batteries: OPEN, AGM, GEL
Weight: Approx. 152g / 5.4oz
Product Size: Approx. 13.5x7x3.2cm / 5.3x2.8x1.3in
How to Use:
Connect the positive and negative poles of the battery to controller, and the controller will automatically detect the battery voltage and connect the solar panel to the controller.
1 x Solar Charge Controller
1 x Chinese and English Manual
