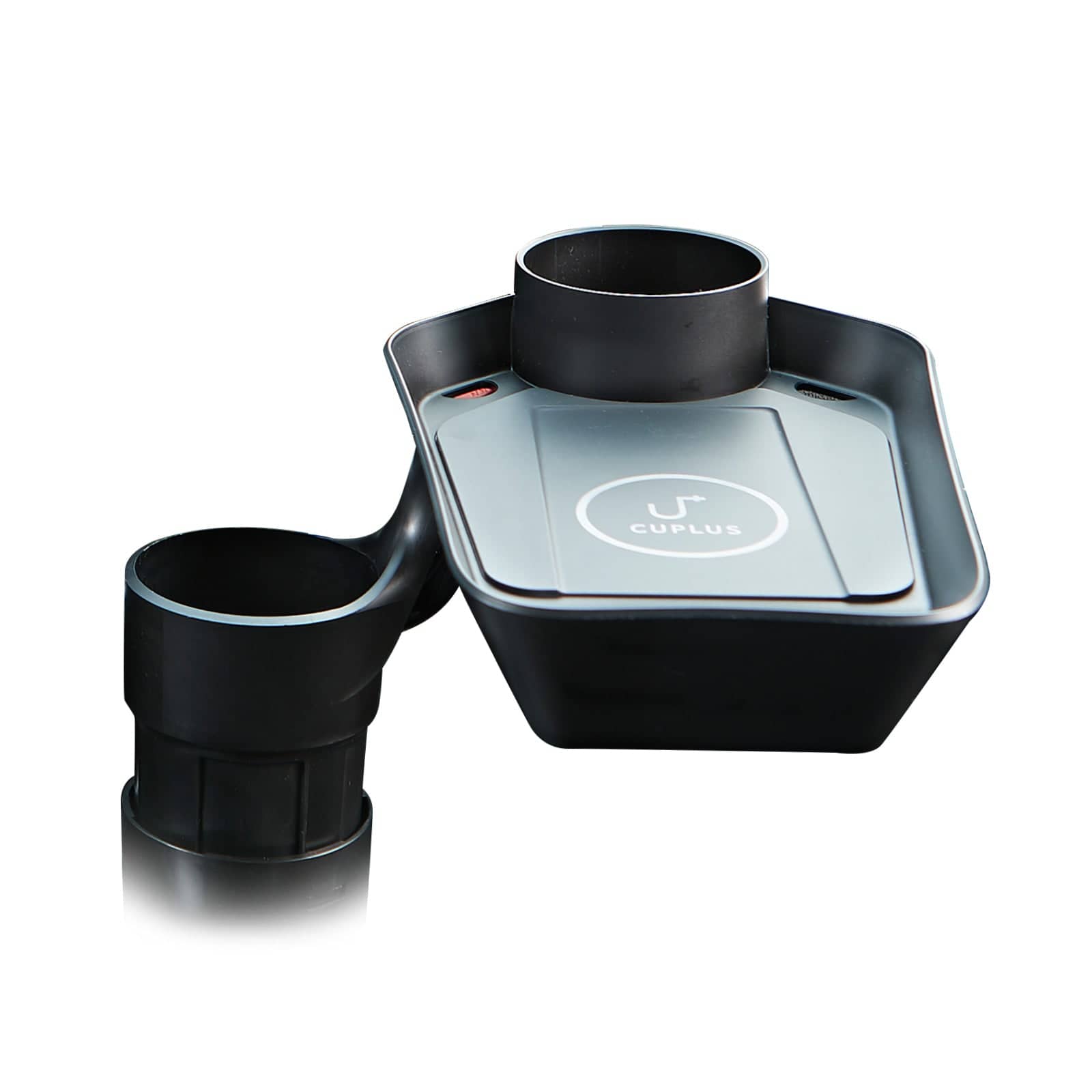

Kustom 10W Car Cup Holder Extension Fast Wireless Charger Tray
Kustom Car Cup Holder Extension 10W Fast Wireless Charger Tray
Instruction:
1. Insert 4 fixation rubbers to each hole under the cup holder extension and install to the car cup holder (To make it tight, 3 jagged part of fixation rubbers may be re-arranged).
2. Press tightly the cup holder extension into the car's cup holder so it does not shake.
3. Insert the cup holder following the wide hole on cup holder extension, and rotate the cup holder to fit the hook to cup holder guard's fixed hole.
*Height control is possible in 2 steps (Rotate (15~20 degree) cup holder to fix or loose)
* To loosen the fixation, rotate to the opposite way by pressing hard.
(Not easy to unwind due to its anti-shake property)
4. Install the tray onto the cup holder. (The tray can be rotated)
5. Connect the USB cable to the port(Type-C)
under the tray, and QC3.0 adaptor for
cigarette lighter.
* Cigarette lighter adaptor for the car is sold separately (not involved).
Product Features:
Product Included:
1x User Guide
1x USB Cable(C-Type)
1x Cup Holder
1x Cup Holder Extension
4x Fixation rubbers
1x Tray
Product Specification:
KC Certification: R-R-kSp-CP2
Dimensions Diameter: ? 95mm / H : 1 2mm
Size: Cup holder 210x90x190mm
Tray 280x175x65mm
Cable: 1m
Material: PP
Weight: 400g
Package Size: 365x250x84mm
Package Weight : 650g
Product Type: WPC
Mount size : 65~90mm
Protection:
OVP(Over Voltage Protection), OTP (Over Temperature Protection), FOD(Foreign Object Detection)
Coil Type: A11 coil Power Input 5V/2A, 9V/1 .67A
Power Output: WPC 5W, 9W Charging efficiency 85.47 %
Standby Current: 29.52m A Weight 107 g
Fast Charing Mobile: iPhone XR, XS, XS Max, 8/8+, X (7.5W)
Samsung Galaxy S10/10+, S9/S9+, S8/S8+, S7/S7 Edge,
Note 5, 7, 8, 9, 10 (10W) other than normal charging
