1、INCLUDED PARTS: Including 2 VU meters and a driver board, and equipped with flat cables and audio cable, easy to connect and drive, convenient and durable.
2、EASY TO ADJUST: A driver board can control 2 VU meter heads, with 3 potentiometers, and can adjust the backlight brightness and pointer swing amplitude.
3、WITH BACKLIGHT: The audio level meter with backlight design, easy to operate, and can read clearly even in dim environment, which is reliable and practical.
4、WIDE APPLICATION: This VU meter and driver board kit is suitable for DIY preamplifier, home recording equipment or car audio conversion equipment, etc.
5、RELIABLE MATERIAL: These accessories are made of excellent ABS and PCB materials, which are impact and wear resistant, and have stable performance.
Item Type: Audio Level Meter
Product Material: ABS, PCB
Maximum Current Sensitivity: 500uA±10%
Internal DC Impedance: 650Ω±10%
Insulation Resistance: More than 50MΩ
Friction: ±1mm
Pointer Length: Approx. 37 ± 1mm / 1.5 ± 0.04in, from needle end to axes
Pointer Width: 0.45 ± 0.05mm
Meter Installation Position: Vertical
Backlight: Yellow background, orange light bulb 12V 55mA
Scope of Application: Suitable for DIY, recording studio, medical equipment, etc.
Weight: Approx. 184g / 6.5oz

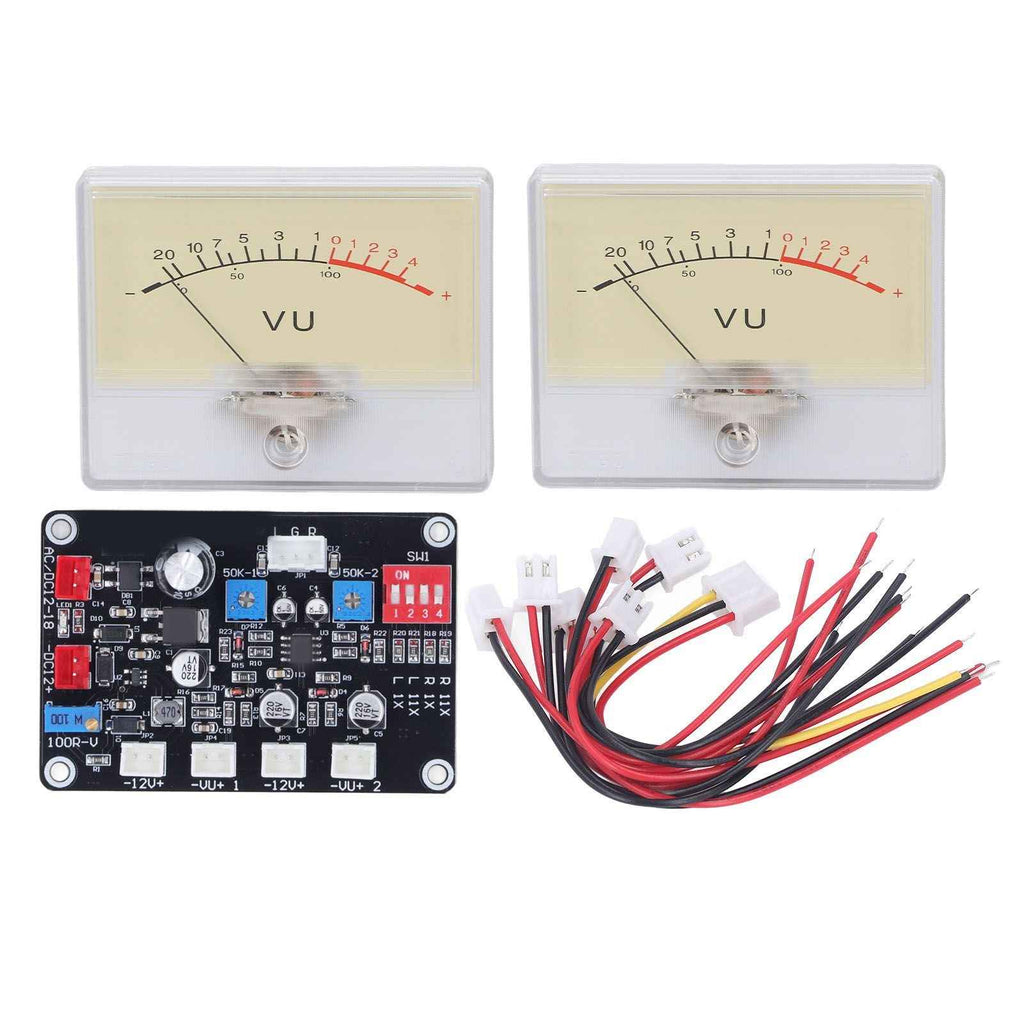

2 x VU Meters
1 x Driver Board
6 x Cables
1 x Audio Cable
1 x User Manual
