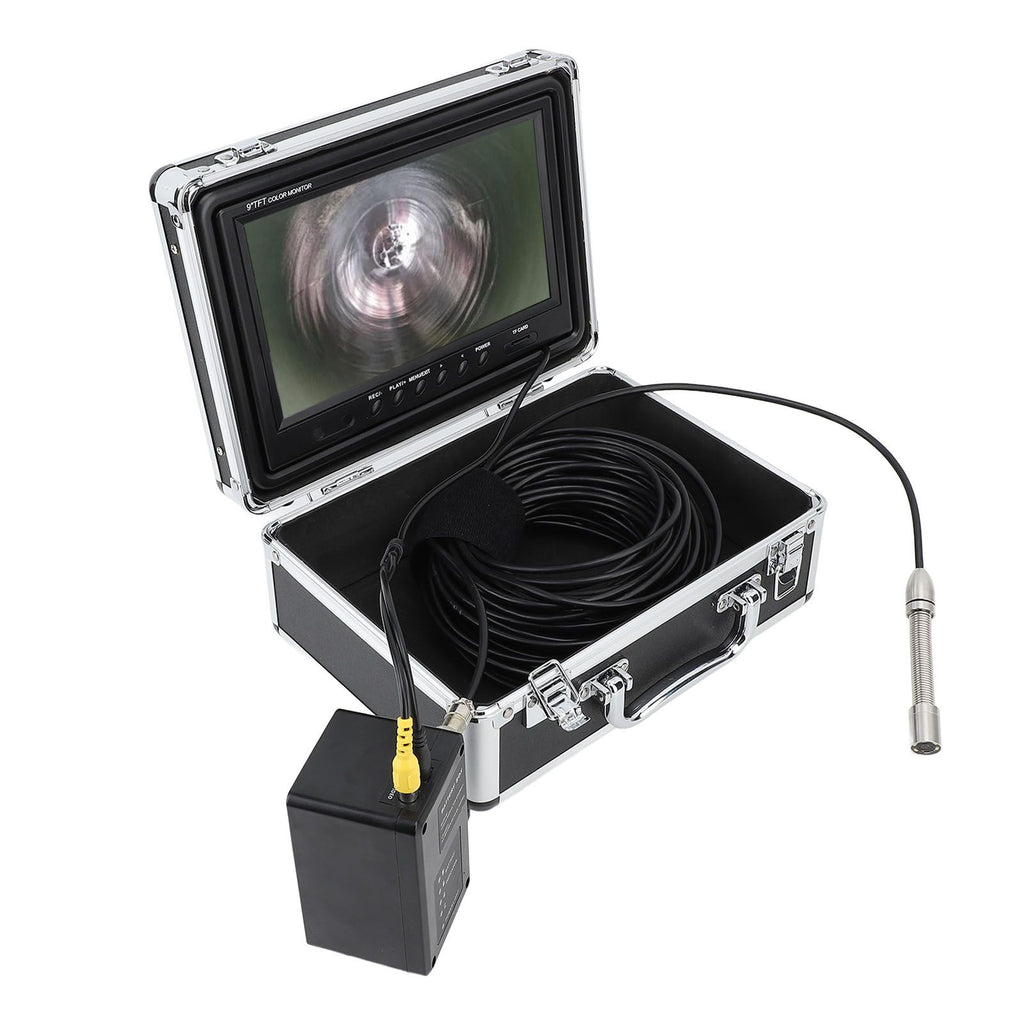

1、Stainless Steel Construction: The camera head is made of durable stainless steel, with a diameter of 17mm, making it suitable for pipes larger than 18mm. It also comes with a 25mm diameter protective cover for added durability. 2、Bendable and Waterproof: The camera head is equipped with a spring, allowing it to turn and navigate through pipes. With an IP68 waterproof rating, it can be submerged underwater up to 20 meters. 3、High Definition Display: The 9 inch high definition color TFT LCD display provides clear visuals with a resolution of 1200 lines. It comes with an 8GB memory card for storing recorded footage. 4、Night Vision Capability: Equipped with 6 LED lamp beads, the endoscope camera has night vision capability. The lights can be adjusted and turned on or off as needed. 5、Battery Indicator: The battery has a built in indicator, allowing you to easily monitor the battery level. This makes it convenient for both outdoor and home use.
Specification
Item Type: Endoscope Camera
Material: ABS, Aluminum Alloy, Stainless Steel
Weight: Approx. 2860.00g/100.88oz
Battery: Lithium Ion Battery 4500mAh (Built In Battery)
Battery Continuous Use Time: About 6h
Inspection Depth: 20m
Waterproof Level: IP68
Menu Language: Multi Language
Camera Image: Color
Working Temperature: -20 to 60°C
Camera:
Camera Light Source: 6 LEDs
Camera Diameter: Approx. 17mm/0.7in
Camera Viewing Angle: 140 Degree
Applicability: Water Pipes, Air Conditioning Pipes, Cable Pipes, Vacuum System Pipes, Buildings, Underground Pipes, etc.
Package List
1 x Storage Box
1 x Display Monitor
1 x 8GB Memory Card
1 x Power Control Box
1 x Camera
1 x Cable
1 x Charger
1 x Screwdriver
1 x Camera Protective Cover
1 x User Manual
Note
1. During installation, ensure that each interface is properly connected.
2. If a blue screen appears during installation, it means that the camera, battery pack, and display monitor are not properly connected.
①Check if the camera is loose and tighten it if necessary.
②Check if the camera video cable is fully in contact with the battery pack.
③Check if the display monitor video cable and power cable are fully in contact.
3. During use, pay attention to the battery power indicator. When it shows the last bar of battery power, recharge it in a timely manner to prevent battery depletion and inability to recharge.
4. Do not knot the cable during use, and the cable bending angle should not be less than 90 degrees.
5. Do not violently drop or strike the product to prevent the cable from breaking.
6. Please power off before inserting or removing the memory card.
