1、Equipped with digital LCD display design, the maximum display value is 1999.
2、Multimeter, with low voltage sign display and overload protection, safe and reliable.
3、It can measure DC voltage, AC voltage, DC current, resistance, diode, transistor, battery, etc.
4、Small size, compact structure, easy to carry, suitable for professional electricians.
5、It is widely used in computer maintenance, electrical inspection, circuit inspection, etc.
Item Type: Multimeter
Material: ABS
Weight: Approx. 150g / 5.3oz
Product Size: Approx. 12.3x6.8x2.3cm / 4.8x2.7x0.9in

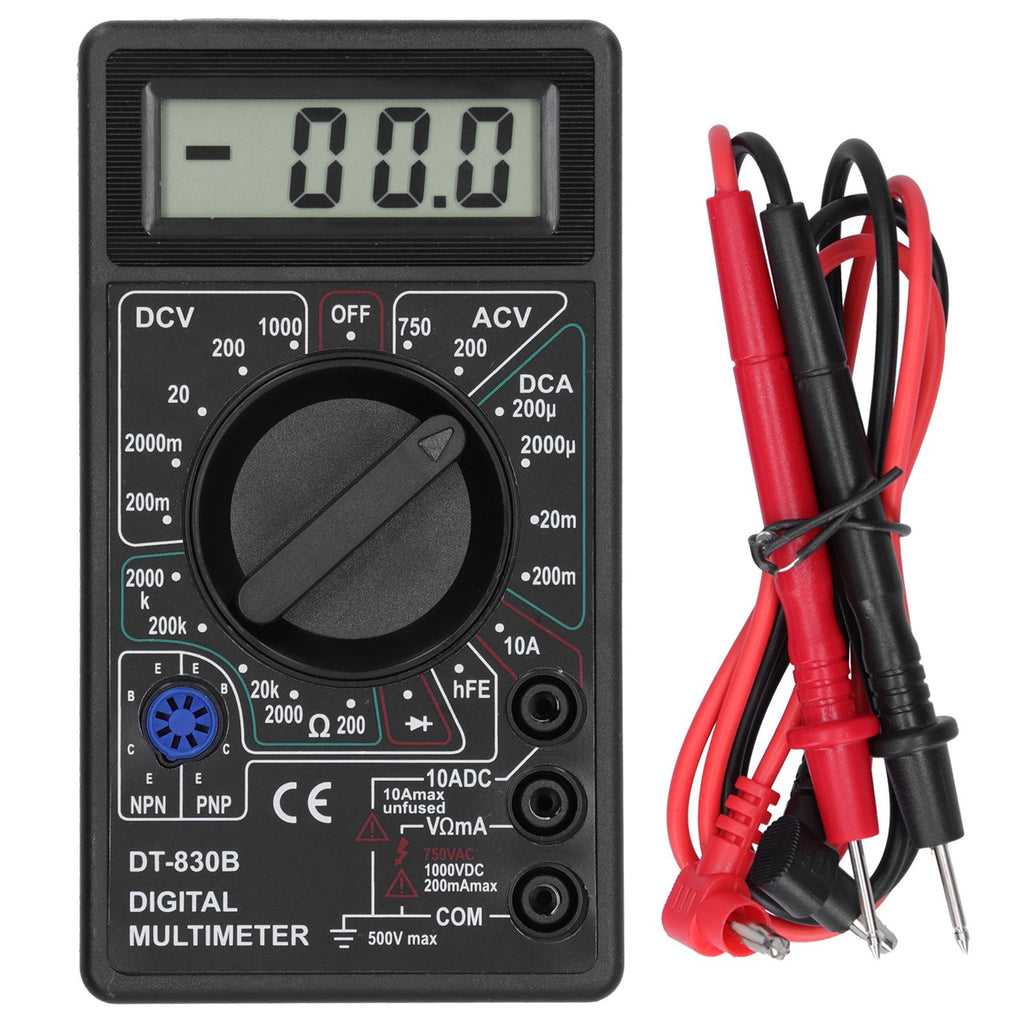

Model: DT830B
DC Voltage: 200mV-500V
AC Voltage: 200-500V
DC Current: 200mA-5A
Diode: Support
Triode: Support
Resistance: 200Ω-2MΩ
Power Supply: 6F22 Model, Carbon Battery Type (Non-Rechargeable), 1Pcs 9V Battery (Battery Not Included)
Maximum Display: 1999
DT830B Instructions for Use:
1. When measuring DC voltage, AC voltage, DC current, resistance, diode, and battery, insert the red pen into the "VΩmA" port and the black pen into the "COM" port.
2. When measuring DC current greater than 200mA, insert the red pen into "10ADV" and the black pen into the "COM" port, and the function switch is set to the response range.
3. When measuring the transistor HFE, insert the PNP tube or NPN tube into the corresponding E, B, C jacks, and set the function switch to the "HFE" position.
1 x English Manual
2 x Teat Lead
1 x Multimeter (Battery Not Included)
