1、Used to measure the thickness of the paint layer of the car coating, with little damage to the car coating
2、It can be automatically calibrated during measurement, and the measurement results are automatically saved
3、With LCD screen display, high resolution, fast and clear imaging, easy to use, observe and read
4、The instrument is small and portable, battery‑powered, easy to carry and measure at any time
5、Low working environment requirements, it is a good choice for thickness measurement of car paint and metal paint
Item Type: Thickness Tester
Material: ABS
Weight: Approx. 57g / 2.01oz
Product Size: Approx. 6.9 x 3.8 x 2cm / 2.72 x 1.5 x 0.79in
Purpose: Thickness measurement of car paint surface, metal paint surface thickness measurement, etc.
Measuring Range: 0.0mm to 2.0mm/0mil to 80mil
Accuracy: 2% rdg±0.1mm or 2% rdg±4mil
(Note: The accuracy is guaranteed at a working temperature of 23C±5°C and a relative humidity not exceeding 75%.)
Resolution: 0.1m/1mil
Power Supply:1 x 3V button battery CR2032(battery not included)
Working Environment: temperature: 0~40°C relative humidity: 80%
Temperature coefficient: 0.05x(2% rdg±0.1mm, or 2% rdg±4mil)/PC( 18°C or 28°C)
Storage Environment: temperature: -10°C to 50°C
Relative Humidity: 80%

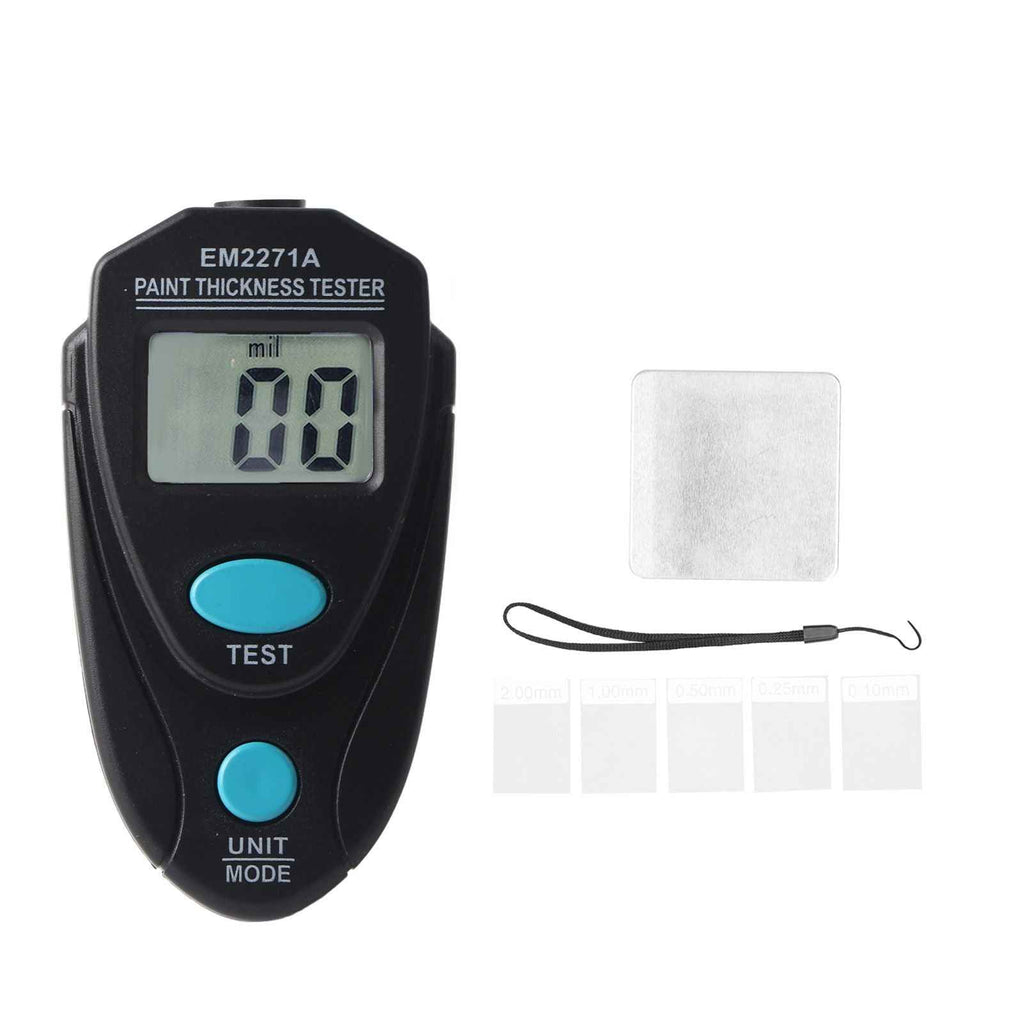

1 x Thickness Gauge(battery not included)
1 x Aluminum Substrate
5 x Calibration Sheet
1 x Manual
