1、PREMIUM MATERIAL: Concrete vibration motor is casted from premium aluminum alloy material, its hard and abrasion resistant shell ensures durability. It can be used for a long time. 2、HIGH PERFORMANCE: Concrete vibrator motor is designed with one piece sealed structure to ensure durability, light weight, fast heat dissipation, stable running, high efficiency, power saving and low noise. 3、EASY TO WIRE: This vibration motor is easy to wire, easy to install on the machine, guard class IP66, well sealed and very safe. Suitable equipment with vibrating table, vibrating feeder, vibrating screen and so on. 4、EASY TO OPERATE: By controlling the speed and vibration force of the concrete vibrator motor, precise control of the vibration effect of the concrete can be realized, ensuring the uniformity and compactness of the concrete. 5、MULTIPLE APPLICATIONS: This vibrating motor has a wide range of applications for mining, metallurgy, coal, electric power, construction, casting, powder coating equipment, powder screening and other fields.
Specification

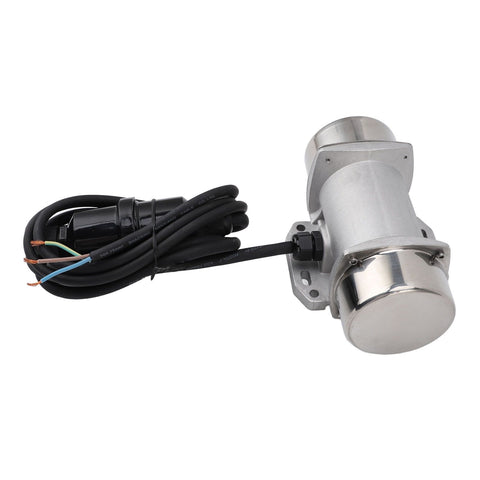

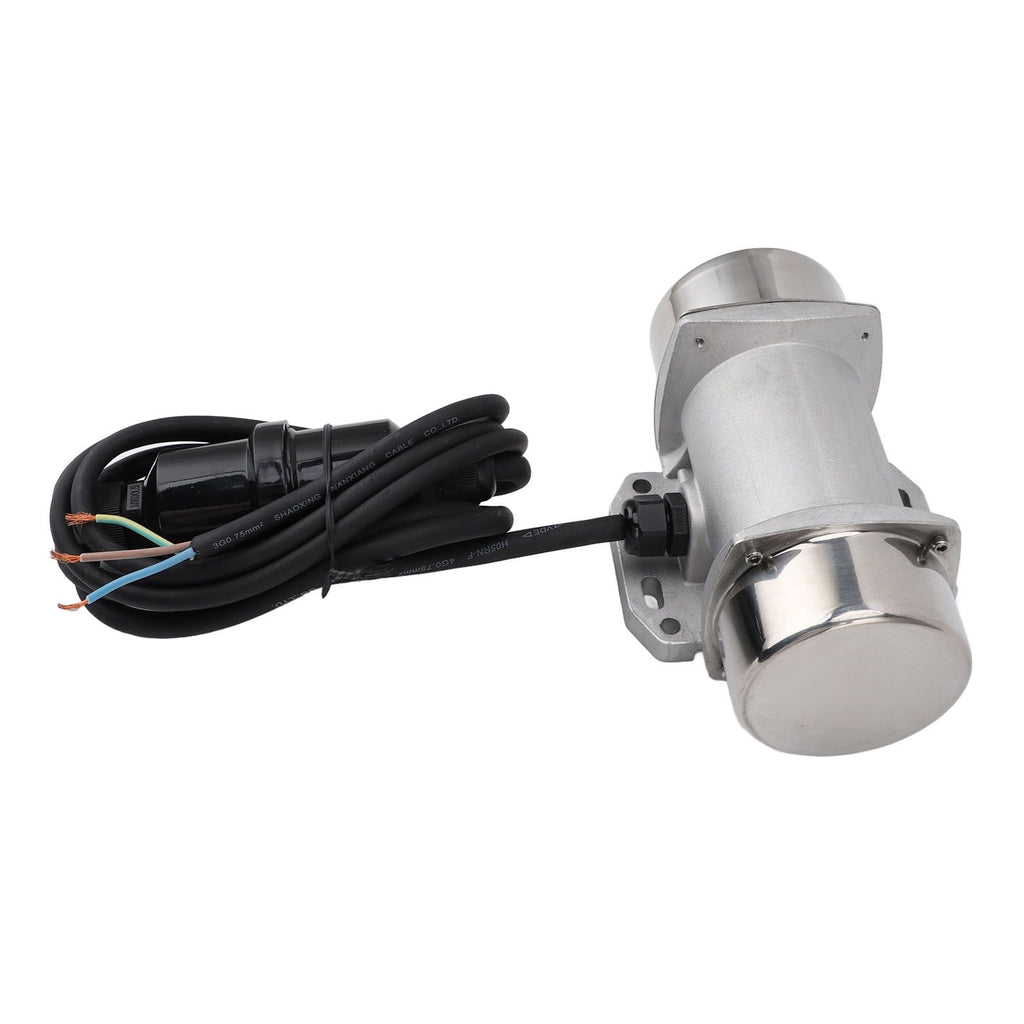

Item Type: Concrete Vibration Motor
Material: Aluminum Alloy
Size: Approx. 160 x 110 x 77mm / 6.3 x 4.33 x 3.03in
Hole Distance: Approx. 92mm / 3.62in
Wide Application: Mining, Metallurgy, Coal, Power, Construction, Casting, Food, Powder Coating Equipment, Powder Sieving, Food Machinery, etc
Application: Suitable equipment with vibration table, vibrating feeder, vibrating screen, density stone removing machine, etc
Guard Level: IP66
Speed (r/min): 2850/3360
Current (A): 0.4
Voltage: 220-230V
Power: 0.07KW
Phase: 1Ph
Excitation Force kgf: 40/58
Gross Weight: Approx. 2515g / 5.5lb
Package List
1 x Concrete Vibration Motor1 x User Manual
Note
Manual measurement, please allow some errors.
