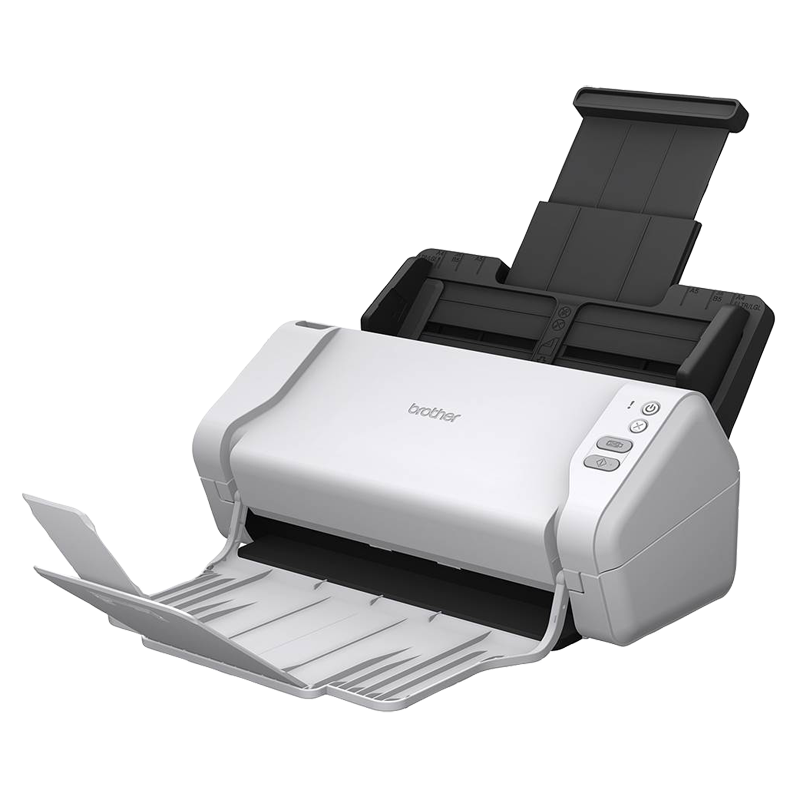

Brother ADS-2200 A4 Desktop Document Scanner

$1,261.99
Powerful New Desktop Document Scanner An affordable, easy to use desktop scanner and is the ideal solution for a variety of business scanning needs for SMB’s and SOHO’s. The new ADS-2200 offers a 50-sheet Automatic Document Feeder (ADF) to handle a business’ most diverse and high-volume scan jobs whilst still...
-
+
$1,051.00

darrahopens

Electronics > Computer Accessories

Out of stock

Powerful New Desktop Document Scanner

An affordable, easy to use desktop scanner and is the ideal solution for a variety of business scanning needs for SMB’s and SOHO’s. The new ADS-2200 offers a 50-sheet Automatic Document Feeder (ADF) to handle a business’ most diverse and high-volume scan jobs whilst still being compact enough for small workspaces, front of house counters and office desktops where space is often limited. Whether it’s a double-sided contract, small receipt, an embossed ID card of up to 1.32mm thickness, or a 5000mm long paper, Brothers’ ADS-2200 has the capability to be loaded with mixed sizes and weights, proving to be a compact yet powerful machine.

 GENERAL SPECIFICATION

Memory Capacity
Standard

512 MB

Power Source

AC: 220 - 240 V, 50/60 Hz

Touchscreen LCD (Liquid Crystal Display) *1

(ADS-2700W)

Touchscreen 71.1 mm TFT Colour LCD

Approx. Power Consumption *2
Scanning *3

ADS-2200: 21 W

ADS-2700W23 W

Ready *4

ADS-2200: 4.7 W

ADS-2700W6.6 W

Sleep

ADS-2200: 0.8 W

ADS-2700W1.0 W

Power Down

ADS-2200: 0.1 W

ADS-2700W0.1 W

Dimensions



\"\"



Approx. Weights

ADS-2200: 2.5 kg

ADS-2700W2.7 kg

Temperature
Operating

5 °C to 35 °C

Storage

0 °C to 40 °C

Humidity
Operating

20% to 80%

Storage

10% to 90%

ADF (automatic document feeder)

Up to 50 pages

(Paper: 80 g/㎡ Legal size, or less than 5 mm)

*1 Measured diagonally
*2 Measured when the machine is connected to your computer.
*3 When using 2-sided (duplex) scanning.
*4 When the USB port is connected.


Document Specifications

Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Document Size
Width

51 to 215.9 mm

Length

51 mm to 355.6 mm



Scanner Specifications

Colour/Monochrome

Yes/Yes

TWAIN Compliant
Windows®

Windows® XP Home (SP3) / Windows® XP Professional (only 32bit SP3) / Windows® 7 (SP1) / Windows® 8 / Windows® 8.1 / Windows® 10

Windows Server® 2008 R2 / Windows Server® 2012 / Windows Server® 2012 R2 / Windows Server® 2016

Mac

macOS v10.10.5 / 10.11.x /10.12.x *1

WIA Compliant
Windows®

Windows® 7 (SP1) / Windows® 8 / Windows® 8.1 / Windows® 10

ICA Compliant
Mac

macOS v10.10.x / 10.11.x /10.12.x *1

Colour Depth
Input

48 bit color processing

Output

24 bit colour Processing

Resolution
Interpolated

Up to 1200 x 1200 dpi

Optical

Up to 600 x 600 dpi

Scanning Width

Up to 215.9 mm

Greyscale

256 levels

Max. Speed

For detailed specifications visit www.brother.com.

*1 For the latest driver updates for the version of OS X you are using, visit support.brother.com

Direct Scan Feature (Scan to USB) Specifications

Compatible Media

USB flash drive 1 *1

Interface

Interface USB 2.0 Hi Speed

*1 USB Mass Storage standard up to 64 GB

Supported formats: FAT12/FAT16/FAT32/exFAT

Interface Specifications

USB

Hi-Speed USB 2.0 *1

Use a USB 2.0 interface cable (Type A/B) that is no more than 2.0 metres long.

LAN

(ADS-2700W)

Use an Ethernet UTP cable category 5 or later.

Wireless LAN

(ADS-2700W)

IEEE 802.11b/g/n (Infrastructure Mode)

IEEE 802.11g (Wi-Fi Direct)

*1

Your machine has a Hi-Speed USB 2.0 interface. The machine can also be connected to a computer that has a USB 1.0/1.1 interface.

Third-party USB ports are not supported.
