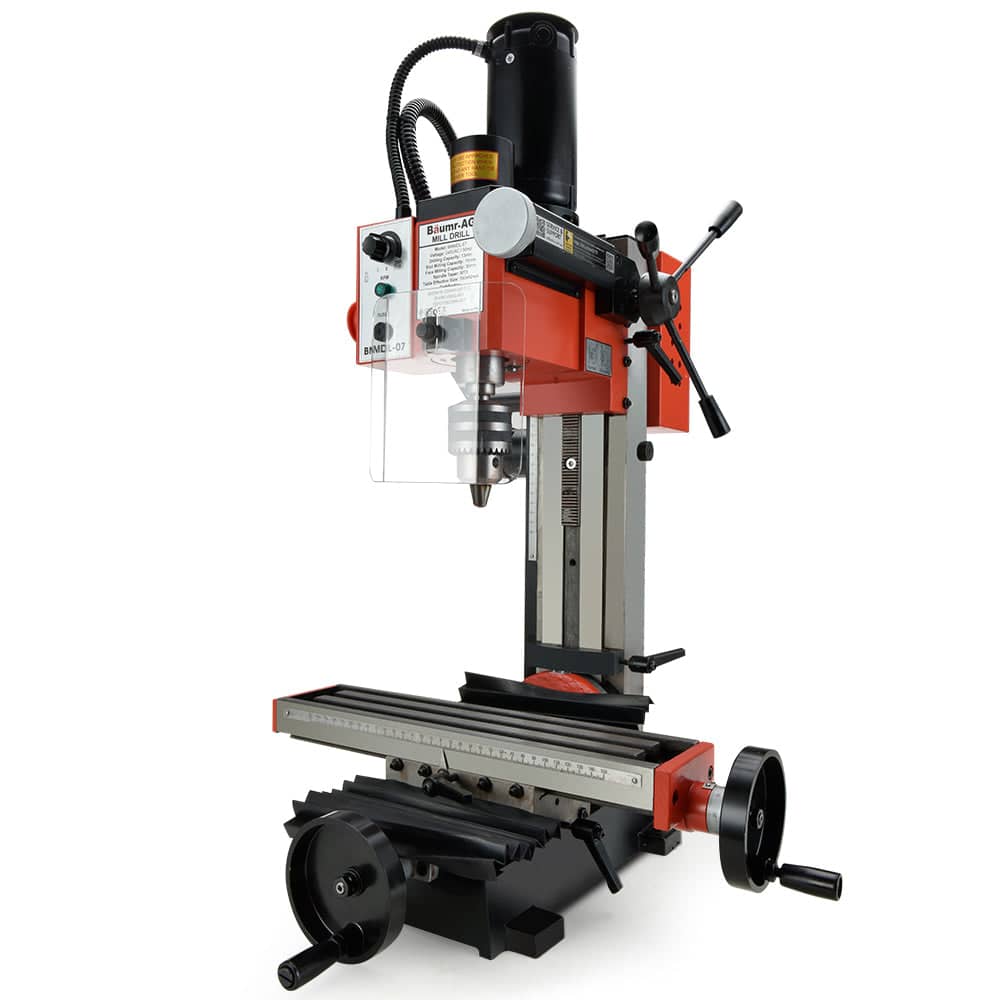

The Baumr-AG BMMDL-07 Mini Mill Drill is a versatile and accurate tool especially designed for model engineers and hobbyists to effortlessly drill, deep mill and face mill. With a 350W DC motor and geared drive there’s no shortage of power on tap! There’s a 2-speed gearbox for optimal torque, and with a variable rotation speeds up to 2500rpm you can work with most metals.

There’s a fine feed for milling and a coarse feed for drilling, and when accurate positioning of holes is required you can use the quick adjust depth limiter. The Baumr-AG boasts a sturdy cast iron body and base that only takes up a small footprint on your workbench.

The precision machined working table has T-slots to facilitate clamping of workpieces of up to 300x200x200mm, and handwheels ensure precision movement of the X and Y axis within a thousands of an inch. The column can conveniently be tilted either side up to 45 degrees from vertical.

For optimal safety there’s a transparent spindle guard, rubber ways chip guard and shut off switch. The Baumr-AG comes with a 14mm keyed drill chuck supplied, and is ready to accept MT3 collets for securing a wide range of cutting tools. Slice through your next project with the Baumr-AG Mini Mill Drill!

Specification

• Brand: Baumr-AG
• Model: BMMDL-07
• Output Power: 350W
• Voltage: 240V AC
• Power Plug: Australian Standard
• Drilling Capacity: 13mm
• End Mill Capacity: 16mm
• Face Mill Capacity: 30mm
• Tilt angle: -45 to +45
• Max X Axis Table Travel: 220mm
• Max Y Axis Table Travel: 100mm
• Max Z Axis without collet: 180mm
• Spindle Taper: MT #3
• Throat: 167mm
• Spindle Speed: Low :0~1000 RPM; High: 0~2500 RPM
• Swing: 324mm
• Spindle to Table: 292mm
• Spindle to column: 162mm
• Work Table Load Capacity: 25kg
• T-slot size: 12mm
• Table Size: 390x92 mm
• Assembly Required

IN THE BOX

• 1 x Baumr-AG Mini Mill Drill
• 1 x 14mm Drill Chuck
• 1 x Lubrication Bottle
• 1 x Assembly Kit
• User Manual is accessible online

SIZE & WEIGHT

• Carton Dimensions (W x L x H): 54 x 48 x 70cm
• Carton Weight: 60kg
• Product Dimensions (W x D x H): 51 x 52 x 76cm
• Product Weight: 50kg

SKU: TOLMDLBMRA07X
