1、Built‑in overheating, overcurrent, short circuit, open circuit protection, troubleshooting, and automatic controller recovery.
2、Auto focusing PWM tracking charging, high charging efficiency, non‑stop detection during charging, two‑way focusing tracking.
3、2V 24V automatic, 12V is suitable for 18V solar panels, 24V is suitable for 36V solar panels.
4、Two‑way MOS tube anti‑backflow circuit, high‑power charging mode, low heat generation.
5、Built‑in short circuit protection, open circuit protection, reverse connection protection, overload protection. 6、Charge 12V/24V lithium battery, ultra‑wide charge and discharge adjustable.

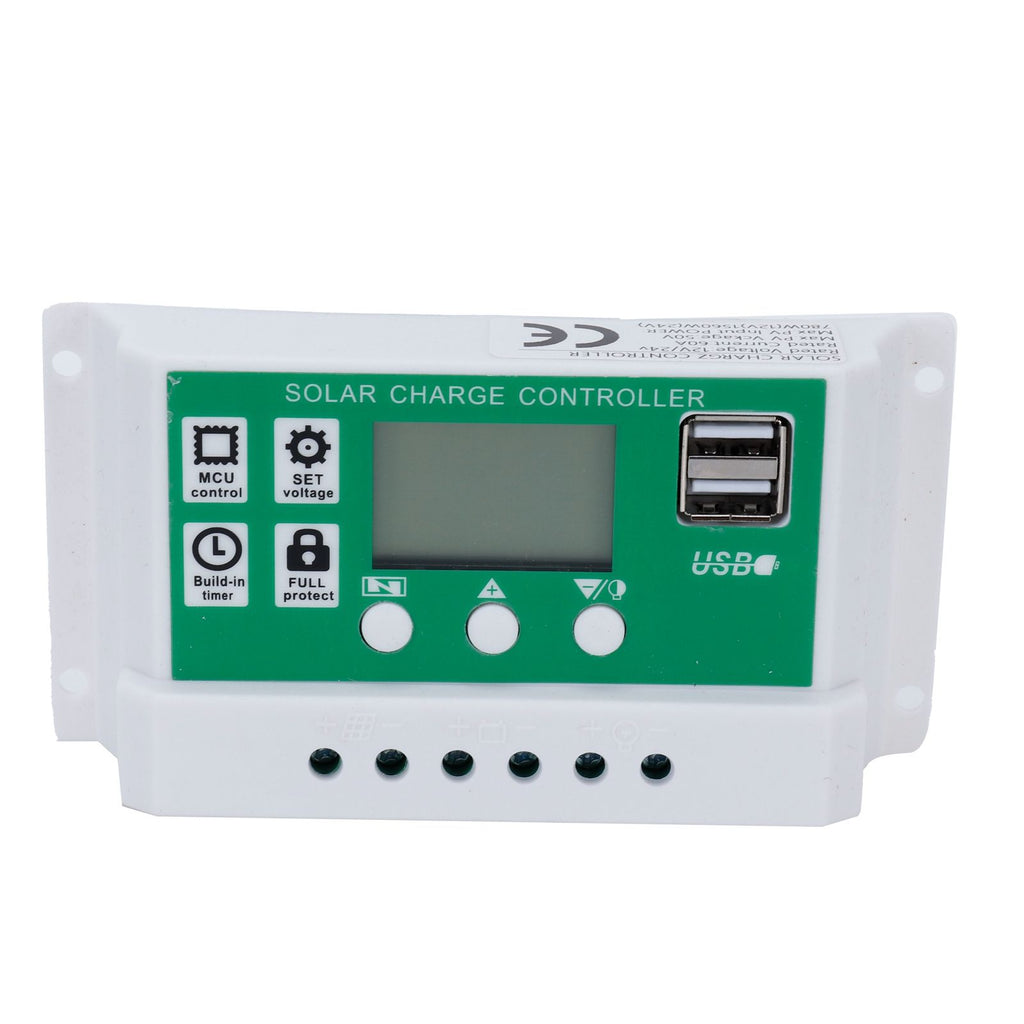

Item Type: Solar Charge Controller
Material: ABS
Color: As shown in the picture
Product Size: Approx. 13.5x7x3.2cm / 5.3x2.8x1.3in
Weight: Approx.152g/5.4oz
Rated Voltage: 12V 24V automatic (12V is suitable for 18V solar panels, 24V is suitable for 36V solar panels)
Rated Current: 60A
Display: LCD screen
Self-Consumption: 10MA
Working Temperature: -35℃-60℃
The regulator is suitable for batteries: OPEN, AGM, GEL
How to Use
Connect the positive and negative poles of the battery to the controller, and the controller will automatically detect the battery voltage and connect the solar panel to the controller.
1 x Solar Charge Controller
1 x Chinese and English Instruction
