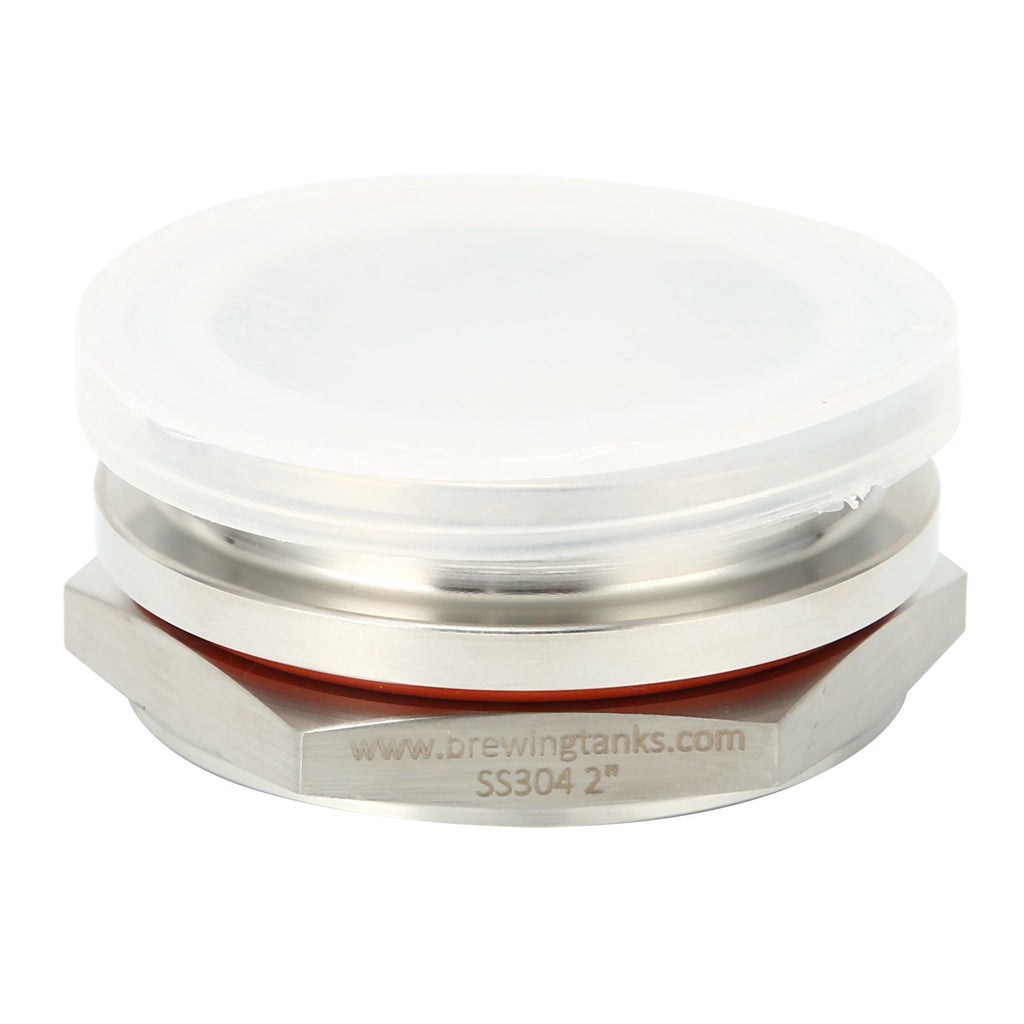

1、Weldless bulkhead fitting parts, just drill a 42mm hole, and then tighten the lock nut.
2、Very suitable for installing top of a Turbo 500 boiler and working on kettles with a minimum diameter of 2in.
3、Selected high‑quality stainless steel materials, safe, non‑toxic, durable and corrosion‑resistant.
4、Easy to use, this fitting will allow you to turn any 48mm hole into a for tri clamp connection.
5、This bulkhead is weldless design, allows you to add a TC port to any vessel no need welding or soldering.
Item Type: Bulkhead Set
Material: Stainless Steel
Weight: Approx. 288g / 10.2oz
Inner Diameter: Approx. 42mm / 1.7in
Total Height: Approx. 30mm / 1.2in
Installation Notes:
1. Hole size required: 42MM
2. The lock nut hex measures 60mm
3. The front of the flange does not have flats for a wrench. The easiest way to hold the flange for tightening is to clamp any other TC parts on with the gasket and clamp. Once tight, you can insert a long rod or screw driver into the hole of the wing nut.
1 x 2in SS304 for Tri Clamp Adapter
1 x SS304 DN 40 Nut
1 x Cover
