1、Brand new and high quality.
2、Long service life, environmental protection.
3、Solar system and dedicated solar power cable.
4、Apply to solar power station, pv connector and pv junction box.
5、With copper wire structure, it is very safe for using.
F
eatures:
Brand new and high quality.
Long service life, environmental protection.
Solar system and dedicated solar power cable.
Apply to solar power station, pv connector and pv junction box.
With copper wire structure, it is very safe for using.
Specification:
Material: Plastic and Copper
Working Current: 30A
Withstand Voltage: DC1000V
Contact Resistance: = 0.5mΩ
Insulation Resistance: 500MΩ
Applicable Single Core Cable Section: 1.5mm2--6mm2
Cable Diameter Range: 5mm ~ 7mm
Ambient Temperature: -40 ℃ ~ +105 ℃
Protection Class: IP67
Security Level: Ⅱ
Insertion Force: ≤ 50N Pull out force: ≥ 50N
Insulation Material: PPO, black
Contact: Copper cn, nickel plated sn
Flame Retardant Rating: UL94-VO
Terminal Connection Method: Crimping
Package Included:

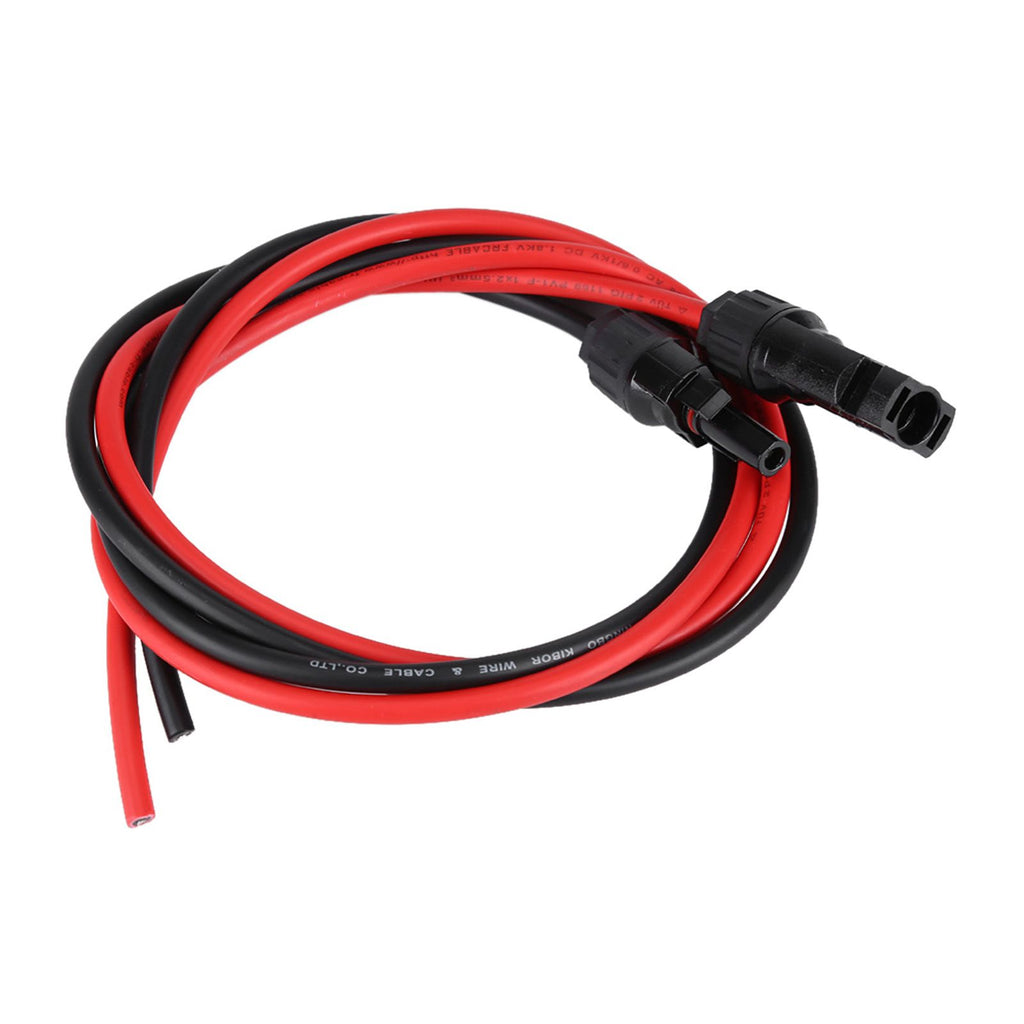

1 x Set of Connectors Red black 3.5 FT
Notice:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.
