1、Made of high-quality copper material, environmental-friendly, really sturdy and durable to use
2、G1/2 type water flow sensor, its maximum water pressure is 1.75MPa, the range of flow is from 1L/min to 30L/min. Three wire connection: Red for positive pole, black for negative pole, yellow for pulse signal
3、There is an integrated hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry
4、Lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use
5、Can be perfectly used for water heaters, water dispenser, water purifier, water vending machine, coffee maker, flow measurement device, water control machine and so on

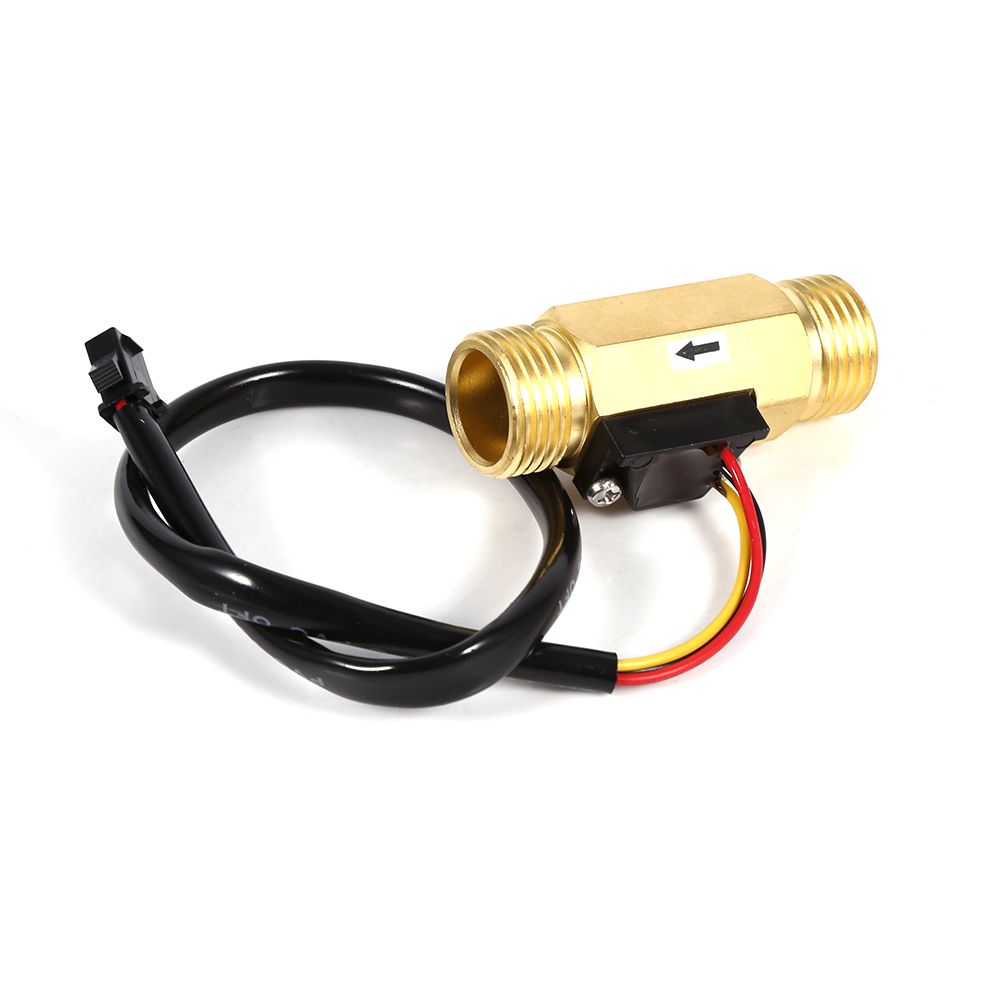

Description:

Our
water flow sensor is made of high-quality copper material, very sturdy
and durable to use, it is a kind of G1/2" type water flow sensor, its
maximum water pressure is 1.75MPa and the range of flow is from 1L/min
to 30L/min. Lightweight and has compact size, stable performance, low
water pressure start, very easy to install and safe to use. And it can
be perfectly used for water heaters, water dispenser, water purifier,
water vending machine, coffee maker, flow measurement device, water
control machine and so on.


Features:



Made of high-quality copper material, environmental-friendly, really sturdy and durable to use.



G1/2" type water flow sensor, its maximum water pressure is 1.75MPa, the range of flow is from 1L/min to 30L/min.



Three wire connection: Red for positive pole, black for negative pole, yellow for pulse signal.



There
is an integrated hall effect sensor that outputs an electrical pulse
with every revolution. The hall effect sensor is sealed from the water
pipe and allows the sensor to stay safe and dry.



Lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use.



Can
be perfectly used for water heaters, water dispenser, water purifier,
water vending machine, coffee maker, flow measurement device, water
control machine and so on.




Specifications:

Condition: 100% Brand New

Material: Copper

Color: Shown as picture

Type: G1/2"(External Thread Diameter), DN20mm

Water Quality Requirement: ≤60℃

Start Flow Range: 1.5L/min

Flow Range: 1-30L/min

Maximum Water Pressure: 1.75MPa

Working Voltage Range: DC4.5-18V

Max Current: 10mA

Insulation resistance:＞100MΩ

Electrical Strength: AC500V, 50Hz

Copper Switch Length: Approx. 60mm / 2.4inch

Wire Length: Approx. 35cm / 13.8inch

Weight: Approx. 95g


Package Included:

1 x Water Flow Switch
