1、Eligible plastic material has marvelous performances of high low temperature and fireproof
2、With excellent aging resistance and UV endurance, can be used in harsh environment
3、Created sealing, design of water proof and dust proof. Good ability of resistance and machine shocking
4、Load capability with big current and high voltage. Lower contact resistant
5、Quick simple assembly processing and simple removal of plugs without the aid of any extra instrument.
Specification:
Condition: 100% Brand New
Material: Plastic
Color: Black
Working Voltage: DC 1000V
Working Current: 30A
Contact Resistance: ≤0.5mmΩ
Insulation Resistance: ＞500MΩ
Working Temperature: -40℃~105℃
Protection Grade: IP67
Safety Class: II
Insertion force: ≤50N
Withdrawal force: ≥50N
Insulation Material: PPO, Black
Contact Element: Coppercn, Nickel Platedsn
Flame Retardant Rating: UL94-VO
Terminal Connection: Crimping
Single Core Cable Section: 1.5mm2--6mm2
Outer Diameter of Cable: 5mm~7mm
Package Weight: Approx. 104g
Package Included:

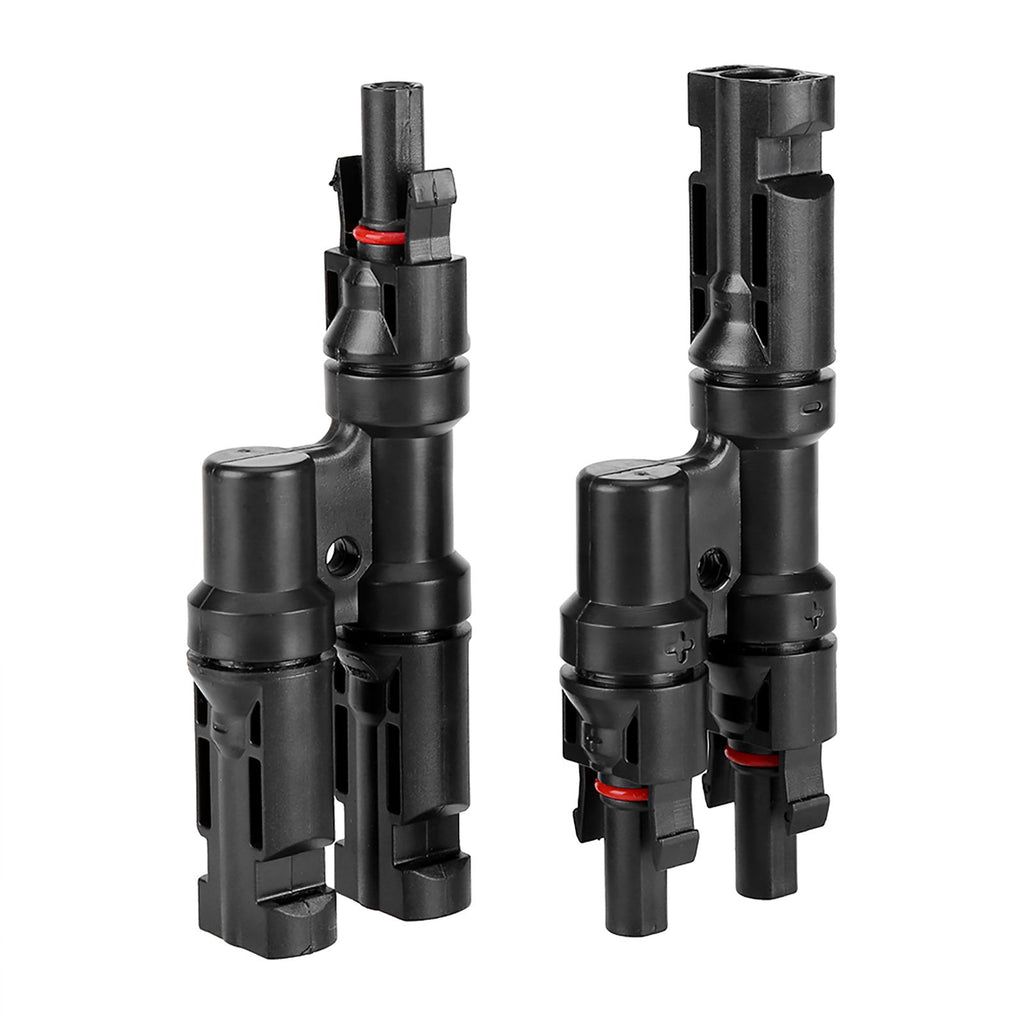

1 Pair * Solar Connector
